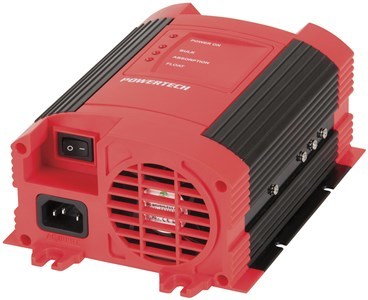

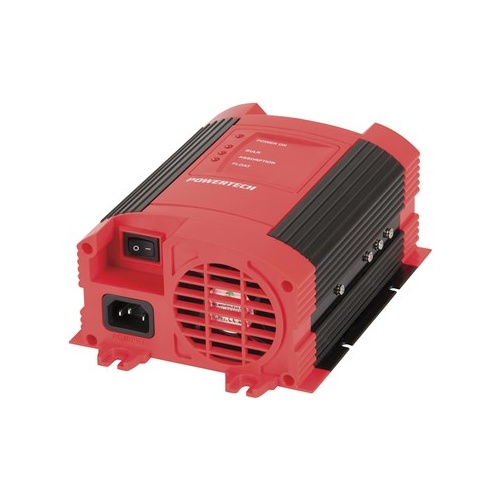

Tough wall mounted high power battery chargers designed to quickly recharge 12V lead-acid batteries (wet, sealed, AGM, etc) with a high level of efficiency and charge current. They feature microprocessor controlled smart 4-stage charging to ensure battery life is maintained by monitoring and charging the batteries safely, resulting in a charger that is safe to leave connected indefinitely. Thanks to their auto-start feature, they are a fantastic choice for caravan, motorhome or marine applications. Output is fully electrically isolated, and the charger can even be set to operate as a regulated high current power supply. DIP switches allow you to select the charging voltage, and output is via heavy duty screw terminals.

Specifications:
• Input voltage: 230VAC
• Bulk/Absorption 14.2VDC / 14.6VDC / 14.8VDC
• Float charging: 13.2VDC / 13.5VDC / 13.8VDC
• Output current (max): 15A
• Advantage boost charging: Yes
• Efficiency up to 88%
• Over charging protected: Max absorption time 6 hours
• Output short circuit protected: Yes, with current limiting
• LED Display: Green - Charger on, Green - Float, Yellow - Absorption, Red - Bulk
• Operating temperature: 0 - 40°C
• Dimensions: 205(L ) x 130(W) x 70(D)mm

SKU AM-MB3710
Barcode # 9319236992517
