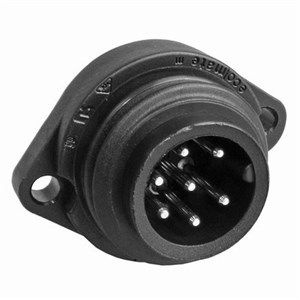

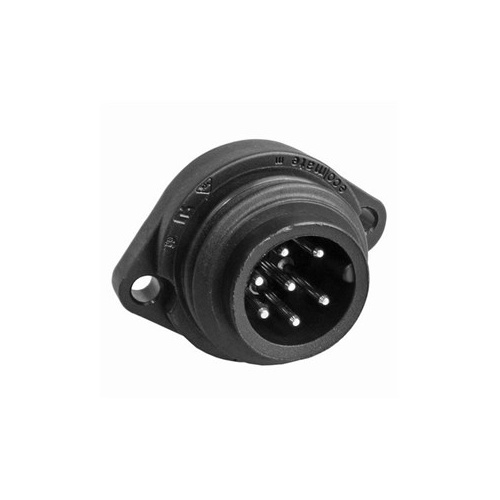

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.

Specifications:
Electrical: 6 Pole + PE
Current Rating: 10.0A @ 55°C
Insulation resistance: > 10Gohm
Voltage Rating: 250VAC RMS/300VDC
Contact Resistance: <5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 0.75mm2
Environmental:
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring and Gland Nut (9mm)
SKU AM-PP1002
Model # PP1002
Barcode # 9319236906514
