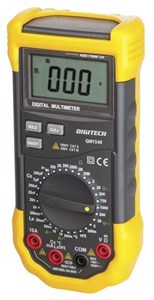

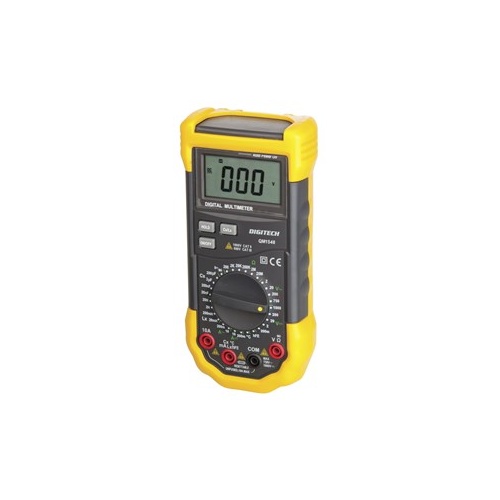

A feature packed DMM with wide range of inductance and capacitance measurement, which are measured via the standard probes. Ideal for audio enthusiasts designing their own crossovers. Features large LCD, auto power-off and temperature measurement.

• Hfe transistor test
• Inductance
• Capacitance
• Auto power-off
• 10A AC & DC current
• Diode test
• Audible continuity
• Data hold
Specifications
Display 2000 count
Security Class Cat III 600V
Basic DCV Accuracy 0.500%
DC Voltage (200mV,2V,20V,200V) ± (0.5%rdg+dgt),1000V (0.8%rdg+2dgt)
AC Voltage (2V,20V,200V) ± (0.8%rdg+3dgt),750V(1.2% rdg+3dgt)
DC Current 200mA ± (1.5% rdg + 1dgt), 10A (2.0% rdg +5dgt)
AC Current 200mA ± (1.8% rdg + 3dgt), 10A (3.0% rdg +7dgt)
Resistance 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ(±0.8%), 20MΩ(±1.0%)
Capacitance 20nF, 200nF, 2µF, 200µF (±4.0%)
Inductance 20mH, 200mH,2H,20H(±3.0%)
Temperature -20°C to 1000°C (±3.0%)
Ave/RMS Ave
Input Impedance 10MΩ
Special features Hfe test, Temperature, Inductance

SKU AM-QM1548
Barcode # 9319236969298
