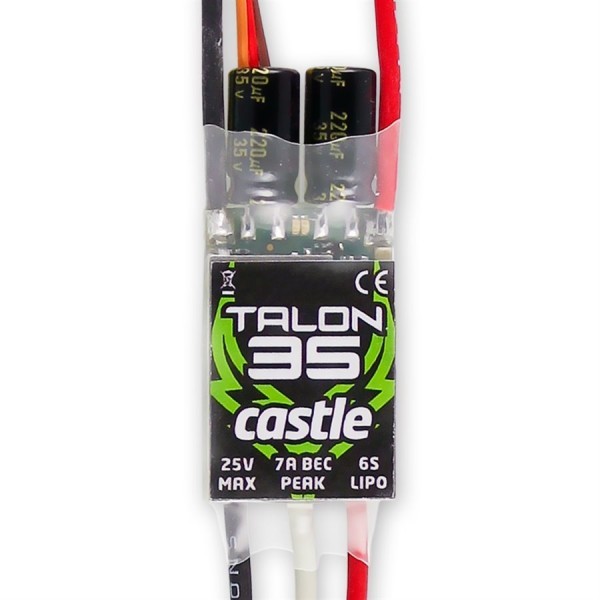

The Talon 35 ESC from Castle Creations is designed to be used in 450-size RC helicopters running up to 6S. Alternatively, it can be used in .10 to .20 fixed-wing applications using up to 35 amps. The Talon 35 offers 7 amp peak and 5 amp continuous BEC. This is complemented by Castle's range of helicopter functions and easy programming with the Castle Link USB adapter (a coupon is included in the package). Complete with a compact layout and thin profile, you will find that installing the Castle Creations Talon 35 to be a straightforward procedure with great benefits for your model. Order yours now.

  • Designed for 450-size RC helicopters running up to 6S
  • Can also work in .10 to .20 fixed wing applications using up to 35 amps
  • 7 amp peak and 5 amp continuous BEC
  • Range of helicopter functions available
  • Easy programming with the Castle Link USB
  • Compact layout and thin profile for easy installation
Input voltage
MIN: 2S LiPo, MAX: 6S LiPo
Max continuous amperage at full throttle
35 amps
BEC voltage (voltage regulator for powering radio and servos)
5.5 volts
BEC output
7 amp peak, 5 amp continuous
Width
0.88" (22.4mm)
Length
1.93" (49mm)
Depth
0.33" (8.4mm)
Weight (with wires)
0.98 oz. (27.8g)
Weight (without wires)
0.42 oz (12g)
Items needed for operation or installation
Battery connector and motor connectors sold separately
Programmability
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
SKU CSE010012200
Brand CASTLE CREATIONS
