Lead the Short Course Truck Pack!

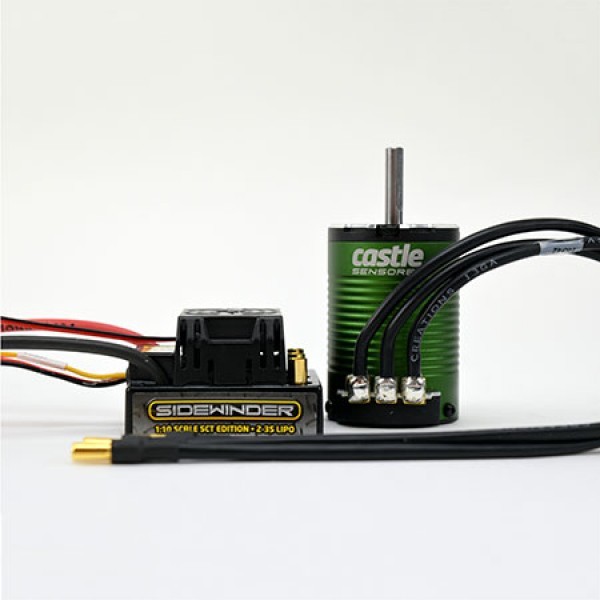

Sidewinder SCT is Castle’s solution for anyone who needs an unbeatable combination of power and affordability in a special edition controller and motor combo made for Short Course Truck racing. Intended for short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It is also a great system and a torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo. This combo now comes with our new sensored** motor. While the sensored capabilities of the motor cannot be utilised with the Sidewinder SCT, users will benefit as the sensored motor is rebuildable (parts available soon), and this design even allows modellers to replace damaged motor wires. The Sidewinder SCT Combo will give you exceptional response and performance right of the box!

The ESC (electronic speed control) offers power to spare at 2-3SLiPo, and a waterproof* case that can perform in just about any environment.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit

** Sensored capabilities of the motor cannot be utilised with the Sidewinder SCT. If you require sensored operation you will need a sensored ESC like the Mamba X.

  • Castle Link compatible
  • Sidewinder SCT Edition ESC
  • Castle 1410 1Y 3800 Kv sensored** motor (with 5mm shaft)
  • Driver's Ed and Quick Start Guides included!
  • 1/10th scale gearing chart
  • Decal sheet
Input Voltage Range:
2s - 3s LiPo; 6 - 9 cell NiMH (2s only for Short Course Trucks)
BEC Specifications:
5.0 volts fixed, 2 amps.
Operating Environment:
Waterproof* design allows for use in nearly any environment.
Brake:
Proportional
Reversible:
Yes, but may be disabled for racing.
On/Off Switch:
Yes
Cooling Fan:
Yes, factory equipped, fully removable** (see Product Use Statements below)
ESC Size:
L: 1.93" (49mm)
W: 1.48" (38mm)
H: 0.79" (20mm)
ESC Weight (w/wires):
1.96 oz. (55.5 g)
Connectors:
4mm female bullets for motor connection.
Items Needed for Operation:
Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Max. Recommended Vehicle Weight:
Up to 6.5lbs. on 2s
Input Voltage Range:
2-3S LiPo
Kv:
3800
Max. RPM:
100000
Size:
Length: 52.7mm
Diameter:
36mm
Weight (w/wires):
237g / 8.4oz
Shaft Size:
Length: 21mm
Diameter:
0.197" (5mm)
Mounting Hole Specifications:
M3 @ 25mm
Cooling Fan:
Optional, coming soon!
Diameter:
0.197" (5mm)
Connectors:
4mm male Castle Bullet Connectors
SKU CSE010012303
Barcode # 819326011559
Brand CASTLE CREATIONS
Shipping Weight 1.0000kg
