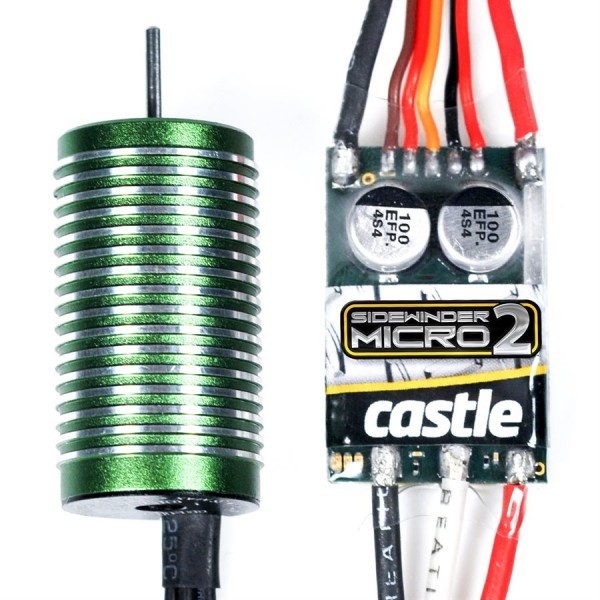

This combo includes a Sidewinder Micro ESC and Castle 0808-8200Kv motor.

Sidewinder Micro 2 is our entry level 1:18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1:18 scale 2WD vehicles and smaller 4WD (up to 1.5 lbs.) such as the Team Associated RC18B2 or Dromida SC4 SCT. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.

Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

  • Adjustable BEC functionality: 5.5V or 7.5V (default 5.5V)
  • The ability to diagnose and resolve problems in the field are made easy as this ESC will communicate with audible tones when certain conditions are present. Alerts are present for start fail, voltage cutoff, radio glitch, overtemperature, overcurrent and excessive load detections.
  • Updated circuitry and refined software makes for ultrasmooth starts.
  • Manual programming settings include Brake/Reverse Type, Voltage Cutoff, Brake Amount, Drag Brake and Motor Type.
Controller
MIN Input Voltage Range:
2S LiPo
MAX Input Voltage Range:
3S LiPo
4-9 cell NiMH (8200kv motor rated for 2s LiPO/7 cell NiMH Max)
Cooling Fan:
No
BEC Specifications:
2A Peak BEC, Adjustable: 5.5V or 7.5V, default 5.5V
Operating Environment:
Not intended for use in wet conditions, ESC is not waterproof
Brake:
Proportional
Reversible:
Yes, but may be disabled for racing
On/Off Switch:
Yes
Length:
1.5" (38mm)
Width:
0.87" (22mm)
Height:
0.5" (12.7mm)
Connectors:
3.5mm bullet connectors on the motor wires
Weight (without wires):
0.92 oz. (26g)
Telemetry Link Capable:
Yes
Items Needed for Operation:
Battery connectors
Product Use Statements:
N/A
Application Guidelines:
1:18th scale RC hobby vehicles weighing up to 1.5 lbs.
Recommended Motors:
Combo includes Castle 0808 8200Kv: Max Cells: 2S Lipo or 7 NiMH
Max. Recommended Vehicle Weight:
1.5lbs.
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Motor
Input Voltage Range:
2S LiPo, 4-7 cell NiMH
Application Guidelines:
Intended for 2WD and lighter 4WD vehicles (<1.5lbs)
Max. Recommended Vehicle Weight:
1.5lbs.
Input Voltage Range:
2S LiPo, 4-7 cell NiMH
Kv:
8200
Max. RPM:
N/A
Motor Size:
Length: 1.5" (38.1mm)
Diameter:
0.79" (20mm)
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Weight (w/wires):
1.8 oz. (50g)
Motor Size:
Length: 1.5" (38.1mm)
Diameter:
0.79" (20mm)
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Weight (w/wires):
1.8 oz. (50g)
SKU CSE010015003
Brand CASTLE CREATIONS
