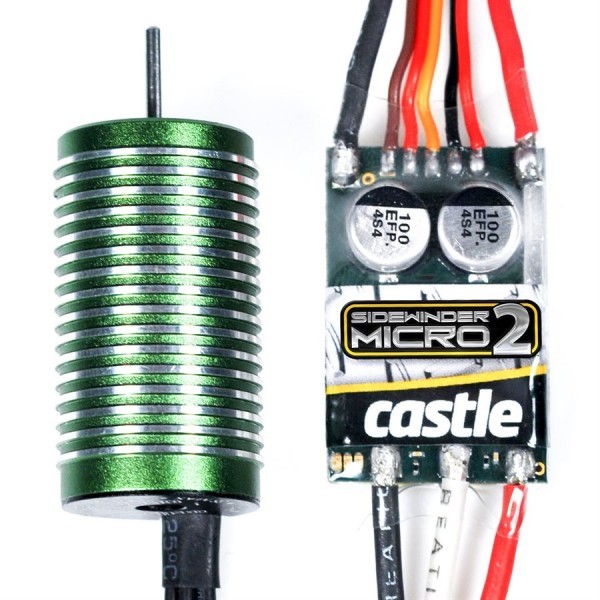

This combo includes a Sidewinder Micro ESC and Castle 0808-5300Kv motor.

Sidewinder Micro 2 is our entry level 1:18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1:18 scale 2WD vehicles and smaller 4WD (up to 2 lbs.) such as the Team Associated RC18B2 or Dromida SC4 SCT. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.

(Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

  • Adjustable BEC functionality: 5.5V or 7.5V (default 5.5V)
  • The ability to diagnose and resolve problems in the field are made easy as this ESC will communicate with audible tones when certain conditions are present. Alerts are present for start fail, voltage cutoff, radio glitch, overtemperature, overcurrent and excessive load detection.
  • Updated circuitry and refined software makes for ultrasmooth starts.
  • Manual programming settings include Brake/Reverse Type, Voltage Cutoff, Brake Amount, Drag Brake and Motor Type.
Controller
Input Voltage Range:
MIN: 2S LiPo
MAX: 3 S LiPo
4-9 cell NiMH
BEC Specifications:
2A Peak BEC, Adjustable: 5.5V or 7.5V, default 5.5V
Max. Recommended Vehicle Weight:
2lbs.
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Operating Environment:
Not intended for use in wet conditions, ESC is not waterproof
Brake:
Proportional
Reversible:
Yes, but may be disabled for racing
On/Off Switch:
Yes
Cooling Fan:
No
Length:
1.5" (38mm)
Width:
0.87" (22mm)
Height:
0.5" (12.7mm)
Weight (without wires):
0.92 oz. (26g)
Connectors:
3.5mm bullet connectors on the motor wires
Items Needed for Operation:
Battery connectors
Telemetry Link Capable:
Yes
Application Guidelines:
1:18th scale RC hobby vehicles weighing up to 2 lbs.
Recommended Motors:
Combo includes Castle 0808 5300Kv: Max Cells: 3S Lipo or 9 NiMH
Motor
Input Voltage Range:
2-3S LiPo, 4-9 cell NiMH
Weight (w/wires):
1.8 oz. (50g)
Mounting Hole Specifications:
2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan:
No
Connectors:
3.5mm male bullet
Mounting Hole Specifications:
2.5mm holes @ 1/2”, 14MM, 5/8”
Kv:
5300
Max. RPM:
N/A
Motor Size:
Length: 1.5" (38.1mm)
Diameter:
0.79" (20mm)
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Application Guidelines:
Intended for 2WD and lighter 4WD vehicles (<2lbs)
Motor Size:
Length: 1.5" (38.1mm)
Diameter:
0.79" (20mm)
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Application Guidelines:
Intended for 2WD and lighter 4WD vehicles (<2lbs)
SKU CSE010015002
Brand CASTLE CREATIONS
