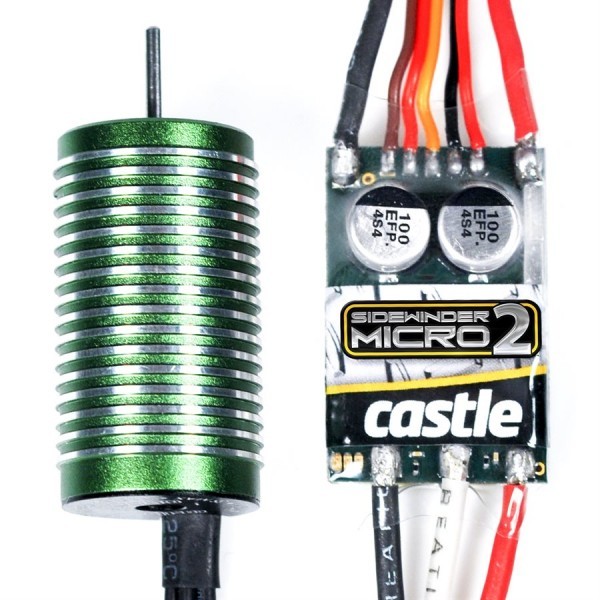

This combo includes a Sidewinder Micro ESC and Castle 0808-4100Kv motor.

idewinder Micro 2 is our entry level 1:18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1:18 scale 2WD vehicles and smaller 4WD (up to 2 lbs.) such as the Team Associated RC18B2 or Dromida SC4 SCT. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.

Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

  • Adjustable BEC functionality: 5.5V or 7.5V (default 5.5V)
  • The ability to diagnose and resolve problems in the field are made easy as this ESC will communicate with audible tones when certain conditions are present. Alerts are present for start fail, voltage cutoff, radio glitch, overtemperature, overcurrent and excessive load detections.
  • Updated circuitry and refined software makes for ultrasmooth starts.
  • Manual programming settings include Brake/Reverse Type, Voltage Cutoff, Brake Amount, Drag Brake and Motor Type.
Controller

Input Voltage Range:
2S-3S LiPo, 4-9 cell NiMH
BEC Specifications:
2A Peak BEC, Adjustable: 5.5V or 7.5V, default 5.5V
Operating Environment:
Not intended for use in wet conditions, ESC is not waterproof
Brake:
Proportional
Reversible:
Yes, but may be disabled for racing
On/Off Switch:
Yes
Cooling Fan:
No
Length:
1.5" (38mm)
Width:
0.87" (22mm)
Height:
0.5" (12.7mm)
Weight (without wires):
0.92 oz. (26g)
Connectors:
3.5mm bullet connectors on the motor wires
Items Needed for Operation:
Battery connectors
Product Use Statements:
N/A
Application Guidelines:
1:18th scale RC hobby vehicles weighing up to 2 lbs.
Recommended Motors:
Combo includes Castle 0808 4100Kv: Max Cells: 3S Lipo or 9 NiMH
Max. Recommended Vehicle Weight:
2lbs.
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:
Yes
Tech Notes:
The Sidewinder Micro 2 has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Motor

Input Voltage Range:
2-3S LiPo, 4-9 cell NiMH
Kv:
4100
Max. RPM:
N/A
Input Voltage Range:
2-3S LiPo, 4-9 cell NiMH
Length:
1.5" (38.1mm)
Diameter:
0.79" (20mm)
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Weight (w/wires):
1.8 oz. (50g)
Mounting Hole Specifications:
2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan:
No
Shaft Size:
Diameter: 0.08" (2mm)
Length:
12mm
Weight (w/wires):
1.8 oz. (50g)
Mounting Hole Specifications:
2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan:
No
SKU CSE010015001
Barcode # 819326011122
Brand CASTLE CREATIONS
Shipping Weight 1.0000kg
