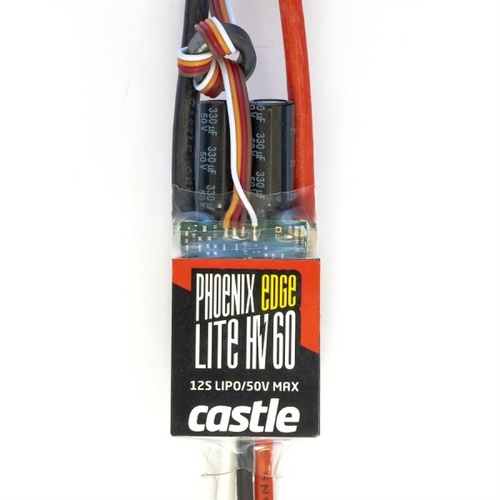

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry-leading software functions, andUSB programming capability via Castle Link USB adapter (coupon included), Phoenix Edge offers unparalleled versatility.

Phoenix Edge Lite HV controllers offer all the amazing features and functionality as the regular HV series with a reduced size and weight.

  • Data logging
  • Telemetry link capable
  • AUX functionality
  • Castle link compatible
  • Power system alerts
Min. Input Voltage Range:
3S LiPo
Max input voltage range:
12S LiPo
Max Continuous Amperage at full throttle:
60 amps*
Max Voltage:
50.4V
BEC Voltage:
N/A
BEC Output:
N/A
Width:
1.2" (30.5mm)
Length:
2.0" (50.8mm)
Depth:
0.8" (21.4mm)
Weight with wires:
3.3 oz. (94.6g)
Weight without wires
1.5 oz. (42.5g) without wires
Connectors:
N/A
Items Needed for Operation:
Battery connectors (sold separately)
Motor connectors (sold separately)
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:
Yes
SKU CSE010011700
Brand CASTLE CREATIONS
