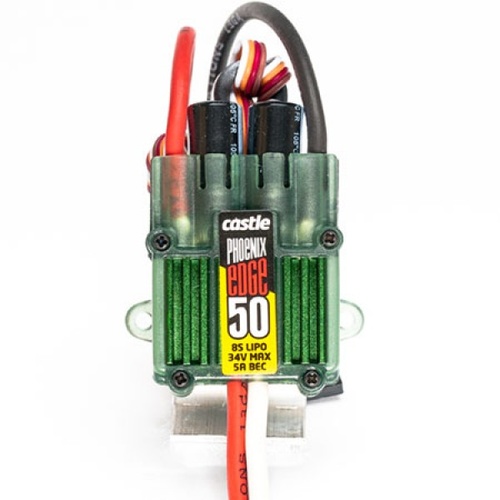

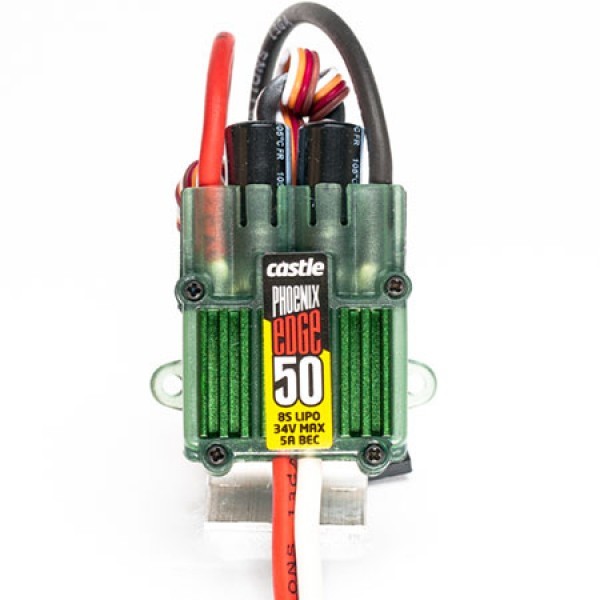

The Phoenix Edge 50 ESC from Castle Creations is a valuable addition to your RC helicopter or fixed wing model. This 32V (8S) ESC, has a maximum continuous amperage of 50 amps at full throttle and comes with a 5-amp BEC. Similar to the other Phoenix Edge ESCs, this speed controller features an auxiliary wire which you can easily program. This white auxiliary wire can be used for a variety of functions. For example, you can use it to adjust the helicopter governor gain mid-flight. It can serve as an audible beacon in the event of an unexpected landing. If you have a 3-axis gyro that supports RPM sensors, the wire can act as an RPM output. Additionally, it can be used as an arming lock for your ESC (Castle Creations have included a coupon for a free Arming Lockout Key with the Phoenix Edge 50). Furthermore, the wire can be used as a receiver arming lock.



The versatility of the Phoenix Edge 50 is evident. When matched with its data logging capabilities, you can see why it is a valuable component in your model. What’s more, the Edge 50 comes with USB programming capability through Castle Creations’ Castle Link USB adapter (again, a coupon has been included with the Edge to give you free access to this service). This Castle Creations ESC is an excellent choice for your 450-class RC helicopter or .25 to .35 fixed wing models. Order yours now.



  • User-programmable auxiliary wire with wide range of functions
  • Data-logging capability
  • Can be used in 450-class RC helicopters or .25 to .35 sized fixed wing models
  • USB programming capability
  • Comes with 5-Amp BEC
Heli Applications
450 class
Fixed Wing Applications
.25 - .35
Minimum Input Voltage
2S LiPo
Maximum Input Voltage
8S LiPo
Max Continuous Amperage at Full Throttle (A)
50
BEC voltage (voltage regulator for powering radio and sevos)
5
SKU CSE010010200
Brand CASTLE CREATIONS
