The Mamba X represents the latest and greatest in Castle Creations Inc. ESC technology. Originally designed to overpower 1:10th scale buggies and trucks, the Mamba X also delivers amazing race capabilities for 1:8th scale eBuggy. After being extensively race-tested by Castle Creations' Lead Mechanical Engineer and Team Driver, Taylor James - the Mamba X has been approved for eBuggy racing with two of our most popular 15 Series Motors.

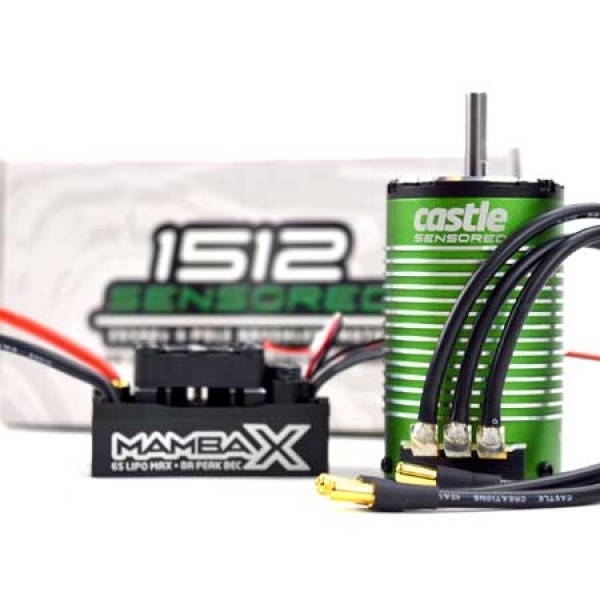

This ROAR APPROVED combo is a Mamba X ESC and 1512 1.5Y 1800kv motor for lighter 1/8th scale applications. Normally this motor is paired with our 1/8th scale Mamba Monster X ESC; but if you need to save some weight or need a smaller footprint, the Mamba X is more than capable of running this motor. This setup is recommended for 3s or 4s use in a vehicle weighing less than ~9lbs and geared for no more than ~45 MPH. If you have a heavier vehicle, looking for more speed or just want to beat the ever loving snot out of your vehicle we would recommend picking up the Mamba Monster X combo.

  • Wide 2S to 6S input voltage range ((3-4S LiPo MAX w/15121800KV MOTOR)
  • Sensored Motor Support (Castle XSeries Sensor Harness Included)
  • Waterproof
  • 8A Adjustable BEC (5.25V8.0V)
  • Datalogging
  • Rugged CNC Aluminum Case
  • Castle Link Programming Support
  • SmartSense
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts
  • 4POLE 12SLOT Rebuildable Design
  • QUIETSENSE Technology
  • ROAR Standard Sensor Port and Labeled Connections
  • HighPerformance 0.2 mm Steel Lamination Stacked Stator
  • HighStrength Kevlar Wrap
  • HighStrength, 180° C Grade, Neodymium Sintered Magnets
  • Oversized, LowResistance, GoldPlated Solder Tabs
  • Oversized NMB Bearings
  • M3 and M4 @ 25mm Mounting Hole
  • 4mm male Castle Bullet Connectors
  • 210mm length Sensor Wire
  • Optional cooling fan coming soon
  • Silicone coated sensor board
ESC Specs

Min. Input Voltage Range
2S LiPo
Max Input Voltage Range
6S LiPo (25.2V) (Max 4s with included motor)
BEC Specifications
Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment
Waterproof* design allows for use in nearly any environment.
Brake
Proportional
Reversible
Yes, but may be disabled for racing.
On/Off Switch
Yes
Cooling Fan
Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size
Length: 2.14" (54.4mm)
Width:
1.39" (35.2mm)
Height:
1.18" (30.0mm)
Weight (with wires)
3.56 oz. (101g)
Connectors:
4.0mm female bullets for motor connection.
Motor Specs

Input Voltage Range:
3-4S LiPo
Kv:
1800
Max. RPM:
60000
Size:
Length: 67.7mm
Diameter:
40mm (41.4mm with fins)
Weight (w/wires):
385g / 13.6oz
Shaft Size:
Length: 20mm
Diameter: 5mm
Mounting Hole Specifications:
M3 and M4 @ 25mm
Cooling Fan:
Optional, coming soon!
Connectors:
4mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Application Guidelines:
Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs. (ROAR 1/8 MOD APPROVED)
SKU CSE010015506
Barcode # 819326011917
Brand CASTLE CREATIONS
Shipping Weight 0.0500kg
