Putting the X in Extreme!

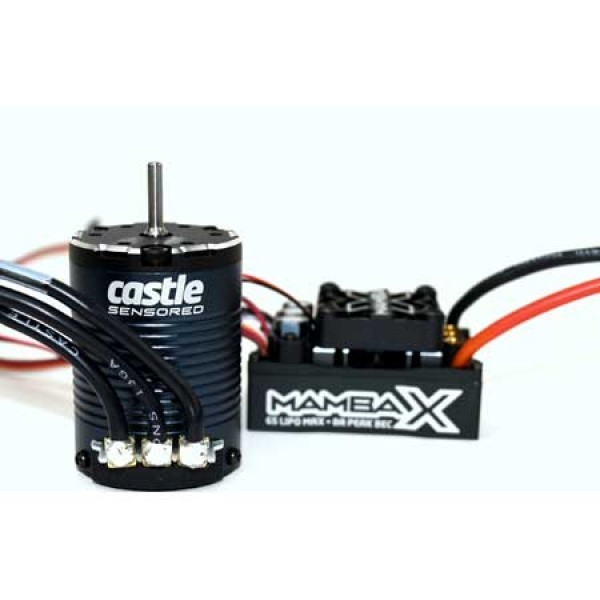

The Mamba X-Crawler Edition is our latest offering for the crawling crowd. We have taken our new 1406 low kV crawler motors and paired it with the high power, ultra reliable Mamba X ESC. This combo is ideal for low-speed crawling or trail running in vehicles weighing up to 9lbs on 2s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. It can also be used in 2WD buggies, stadium trucks and 4WD touring cars; equivalent in RPM output to approximately a 10.5 turn. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

The Auxiliary Advantage
Mamba X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!

Telemetry Capability
The Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Package Includes:

  • Mamba X Electronic Speed Controller
  • 1406-3800kv sensored brushless motor
  • 210mm length sensor wire (for sensored operation)
  • Castle Sensor Harness Adapter
  • Coupon for free Castle Link USB adapter
  • Driver's Ed and Quick Start Guides
  • Castle decal sheet

*Not intended for operation while submerged in liquid. If the unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

  • Wide 2S to 6S input voltage range
  • Sensored Motor Support (Castle XSeries Sensor Harness Included)
  • Waterproof
  • 8A Adjustable BEC (5.25V8.0V)
  • Datalogging
  • Rugged CNC Aluminum Case
  • Castle Link Programming Support
  • SmartSense™
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts
Input Voltage Range:
MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
BEC Specifications:
Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment:
Waterproof* design allows for use in nearly any environment.
Brake:
Proportional
Reversible:
Yes, but may be disabled for racing.
On/Off Switch:
Yes
Cooling Fan:
Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size:
Length: 2.14" (54.4mm)
Width:
1.39" (35.2mm)
Height:
1.18" (30.0mm)
Weight (with wires):
3.56 oz. (101g)
Connectors:
4.0mm female bullets for motor connection.
Input Voltage Range:
2S-3S LiPo
Kv:
2850
Max. RPM:
100000
Size:
Length: 49.5mm
Diameter:
36mm
Weight (w/wires):
197 g / 6.9oz
Shaft Size:
Length: 15mm
Diameter: 1/8" (3.17mm)
Optional 5mm rotor replacement available.
Mounting Hole Specifications:
M3 @ 25mm
Cooling Fan:
Optional - Coming Soon
Connectors:
4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Mounting Hole Specifications:
M3 @ 25mm
Application Guidelines:
Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight:
9lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.
SKU CSE010015511
Brand CASTLE CREATIONS
