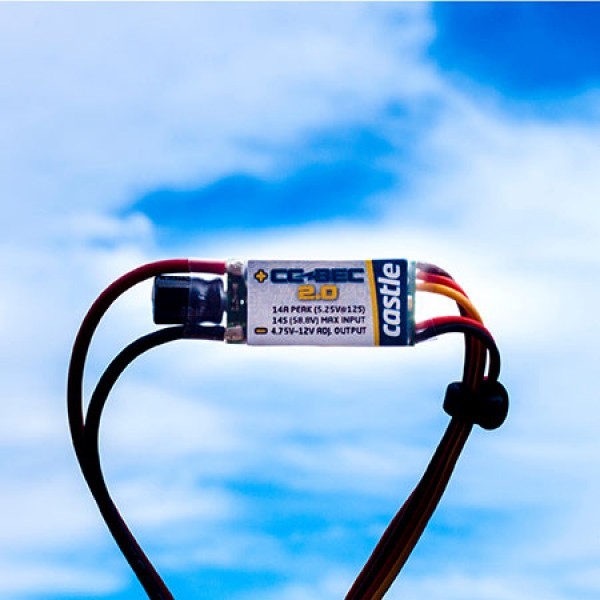

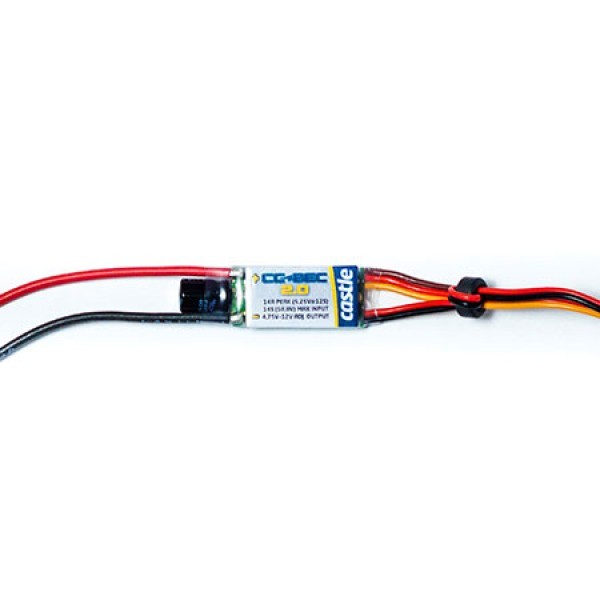

The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.

Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Part Number:
010-0154-00
Common applications:
Helis, Planes, UAS, Racing
Waterproof:
No
Peak current:
14A (dependent upon input and output voltage)
Continuous current1:
4.75-7.0V output: 9A
7.25V-8.5V output: 8A
8.75V-10.0V output: 7A
10.25-12.0V output: 6A
Max volts:
Surface: 12S (50.4V)
Air (W/Brake): 12S (50.4V)
Air (No Brake): 14S (58.8V)
Adjustable output voltage2:
4.75 to 12V
Default setting:
5.25V
Length:
1.69" (43mm)
Width:
0.56" (14mm)
Height:
0.32" (8mm)
Shipped weight3:
0.7 oz. (21g)
SKU CSE010015400
Barcode # 819326011214
Brand CASTLE CREATIONS
Shipping Weight 0.0500kg
