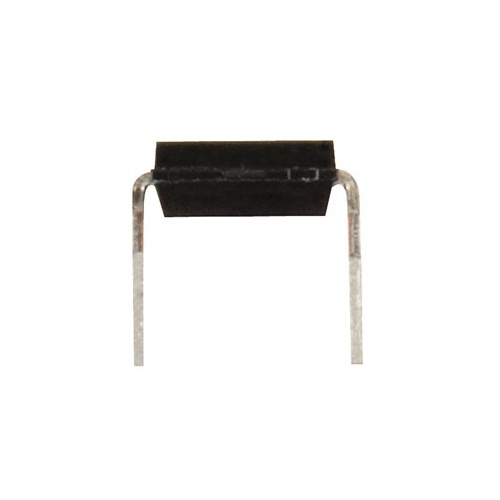

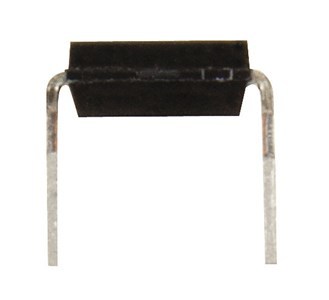

Small square device measuring 4(w) x 5.4 (L) x 2(D)mm.

Specifications:
- Reverse voltage: 20V max
- Forward voltage: 1.3V @ 100mA
- Spectral sensitivity: 34uA @ 5V
- Wavelength of max. sens: 950nm
- Spectral range of sensitivity: 800 to 1100nm
- Half angle: +/- 60°- Dark Current: 2nA @ 10V
- Open-circuit voltage: 330mV
- Short- circuit current: 17uA
- Rise and fall time: 20ns @ 5V
- Capacitance: 48pF

- Cathode marking: flag on leg
SKU AM-ZD1947
Model # ZD1947
Barcode # 9319236030639
