Simplify your CCTV installation by combining composite video, audio and power
for transmission over one UTP Cat6, 5 or 5e cable. The balun accepts all composite

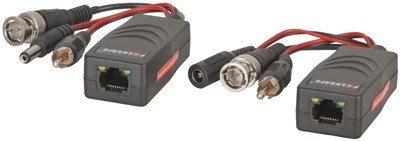

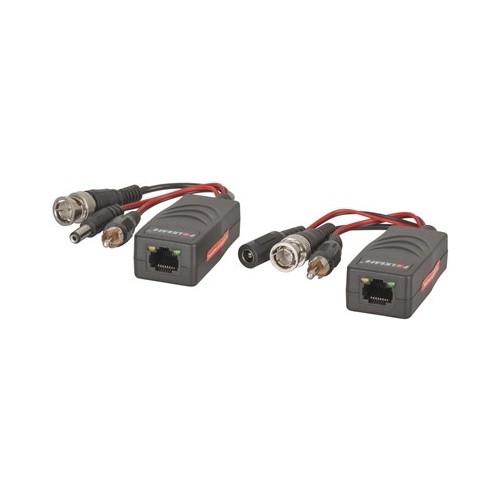

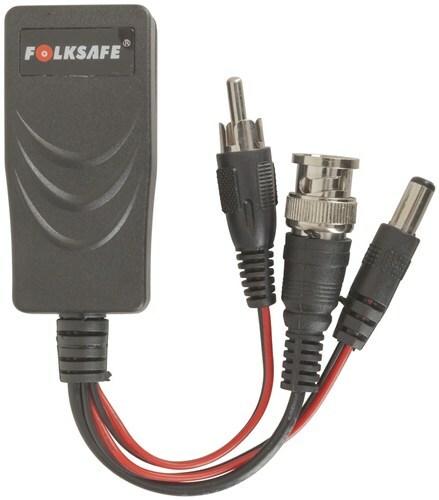

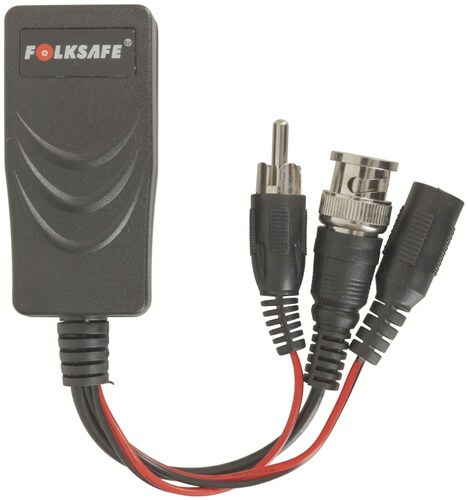

video signals such as AHD, TVI and CVI. This kit includes two baluns; one to act as
the transmitter and the other the receiver. It is suitable for CCTV setups,
multimedia presentations and video conferencing.

Features:
. BNC, RCA Audio & DC Connection
. TVS Surge Protection
. 60dB Crosstalk & Noise Immunity

Specifications:
Network Cable: UTP Cat6, Cat5e, Cat5
Transmission Distance: up to 300m
Camera Support: AHD, TVI, CVI, Analogue
DC Connection: 2.1mm
Supported Voltage: 12-24VDC
Dimensions: 60(L) x 28(H) x 19(W)mm
SKU AM-QC3669
Model # QC3669
Barcode # 9319236545362
