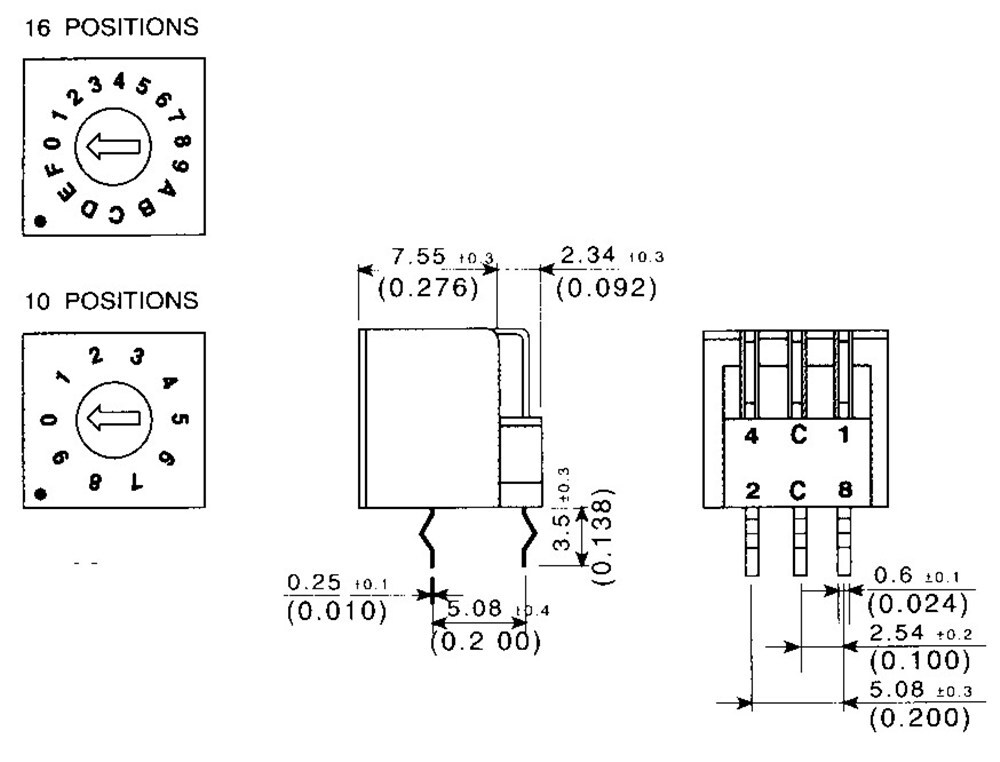

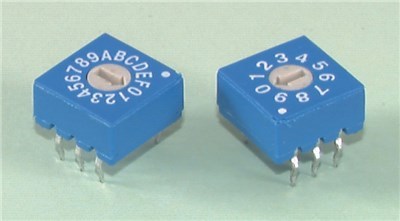

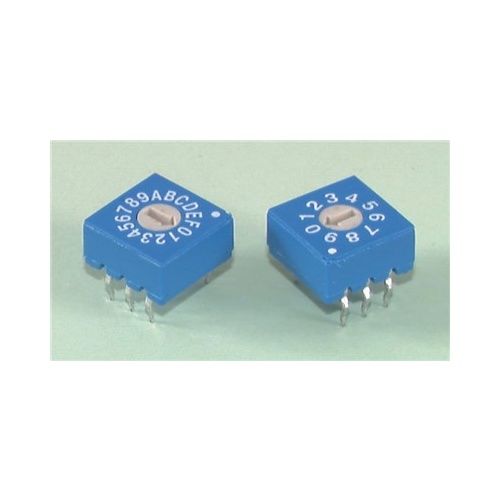

These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is moulded in UL 94V-0 flame retardant plastic. Specifications:Contact rating: Switching: 25mA@24VDCNon Switching: 100mA@50VDCContact Resistance: 100mmaxInsulation Resistance: 1,000M(min) at 100VDCDielectric Strength: 250V AC for 1 minuteTemp (operating): -25°C to +70°CMax RotationalTorque Required: 500gf-cmOperational Life: 20,000 steps/min, switchingVibration: Per MIL-STD-202F Method 204DSolderability After flux: 230 +/-5°C for 5 +/- 0.5 sec- 0 through F output
SKU AM-SR1220
Model # SR1220
Barcode # 9319236849866
