Specifications

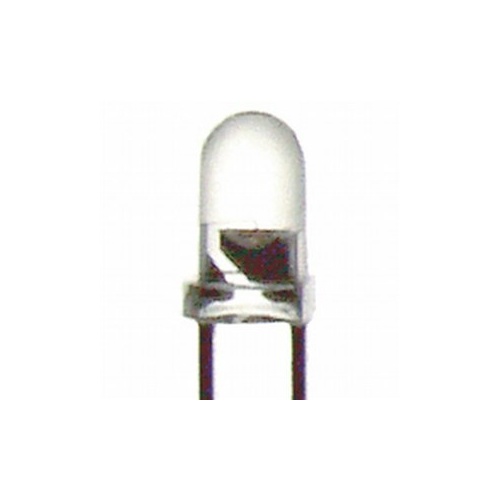

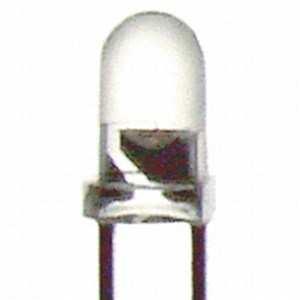

Bi Colour Red Green
Size (mm) 3 3
Lens Diffused Diffused
Viewing Angle (Degrees) 65 65
Wavelength (nm) 605 570
IF Typical (mA) 20 20
VF Typical (V) 2.1 2.3
IV Typical (mcd) 1.3 1.5
IF Max Continuous (mA) 30 30
Preferred Series Resistor (ohms)
5VDC 150 150
9VDC 360 360
12VDC 510 510
SKU AM-ZD0248
Model # ZD0248
Barcode # 9319236890301
