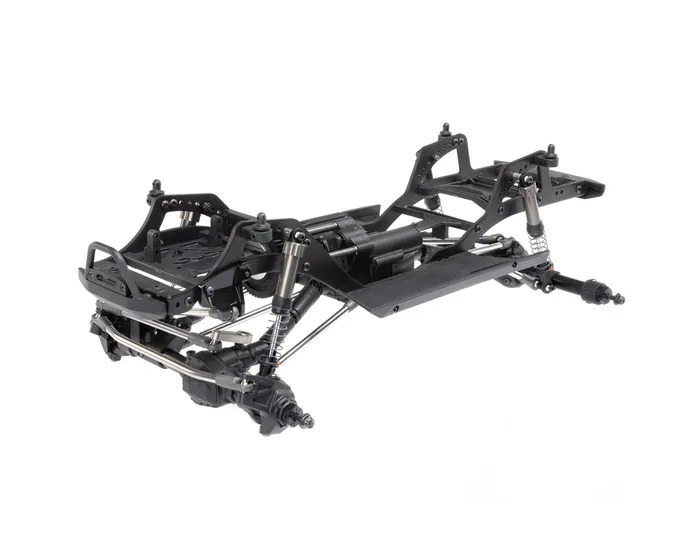

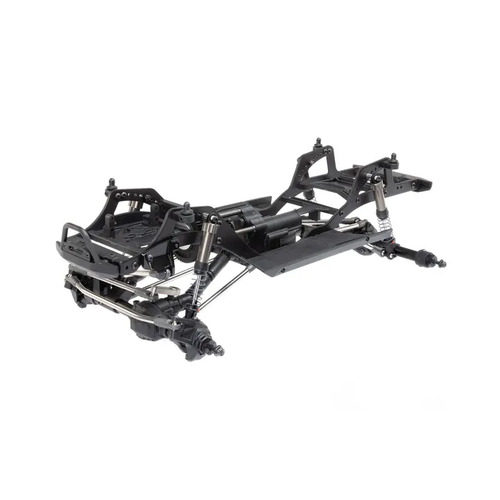

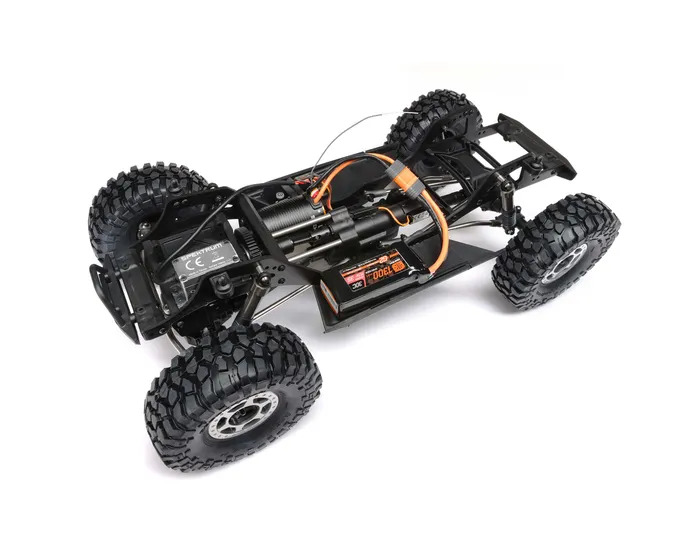

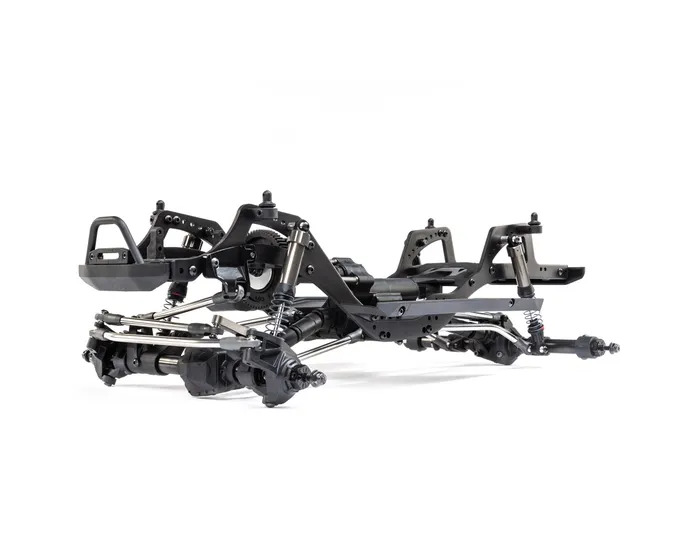

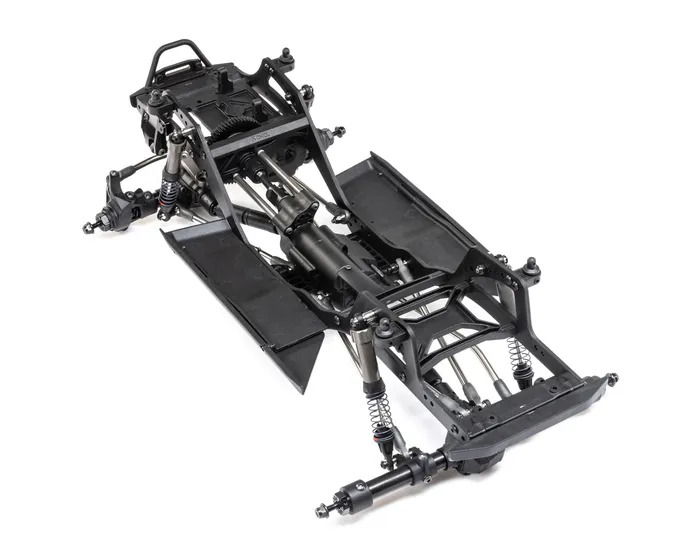

The SCX10 Pro 4WD is a competition ready kit that delivers top level performance, convenience and value for money. For drivers who push their cars to the edge this kit has many advantages and innovations but is also a great drive for those wanting a quality RC crawler.

Features

  • Easily build a competition-ready scale crawler with plenty of innovations that have not been offered before in a comp-ready kit
  • Compared to buying components separately the Pro kit saves you plenty of money and time
  • More adjustable, lower and lighter the chassis is designed for competition and to optimise side hilling, break-over and climbing performance
  • Steel tube axles are multi-piece in order to accommodate an axle-mounted servo (AMS) or you can opt for a chassis-mounted servo (CMS)
  • Improved balance and excellent weight distribution from the forward and low motor position
  • The rear axle can be underdriven via servo or you can manually lock the rear axle in 1:1 or underdrive
  • New smooth body 96mm aluminium oil-filled shocks
  • With designer Wyatt Mellon driving the Pro has already won and placed at multiple events

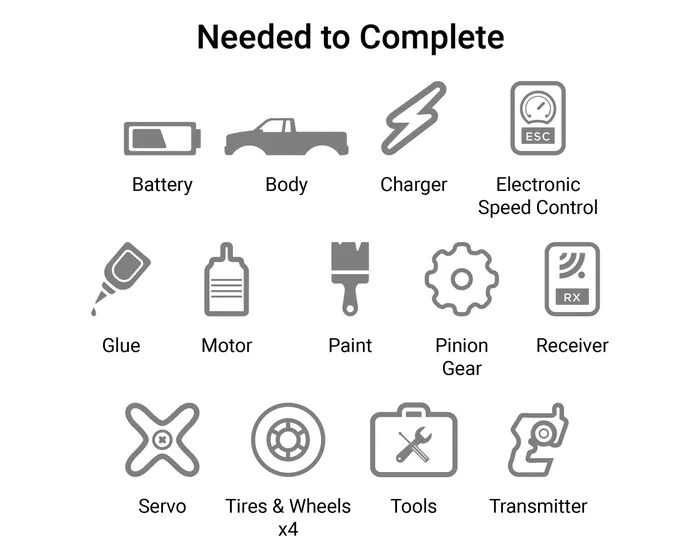

What you need

  • (1) 2- to 4-Channel Surface Transmitter & Receiver
  • (1) Rock Crawler Motor
  • (1) Electronic Speed Control
  • (1) Steering Servo
  • (1) Body for SCX10 Pro Chassis
  • (4) Wheels with 12mm Hex
  • (4) Tires to Fit Wheels
  • (1) Micro servo for optional use of shift-able underdrive
Shock Type
2.9" - 3.8" (74-96mm) Aluminum Oil filled
Product Weight
3lbs (1.4kg) Without Components
Servos
Sold Separately
Speed Control
Sold Separately
Ball Bearings
Complete Vehicle
Drivetrain
4WD
Brakes
Integral with ESC
Charger
Sold Separately
Scale
1/10
Approximate Assembly Time
5-7 Hours
Body
Not Included
Ground Clearance
2.25" (57.1mm)
Product Width
9.25" (235 mm)
Steering Type
2WS
Vehicle Type
Rock Crawler
Chassis
Aluminum Plate
Internal Gear Ratio
10.26:1, 15.33:1
Motor Size
540/550 recommended
Pinion
13T
Product Height
7" (178 mm)
Completion Level
Kit
Final Drive Ratio
38.46:1, 57.50:1
Power Type
Electric
Product Length
16.65" (423 mm)
Radio
Sold Separately
Differential
Locked
Wheelbase
12.5" (318 mm)
Suspension
3-Link/4-Link
Battery
Sold Separately
Wheel Hex Size
12mm
Gear Pitch
32-Pitch
Receiver
Sold Separately
SKU AXI03028
Barcode # 605482168912
Brand AXIAL
