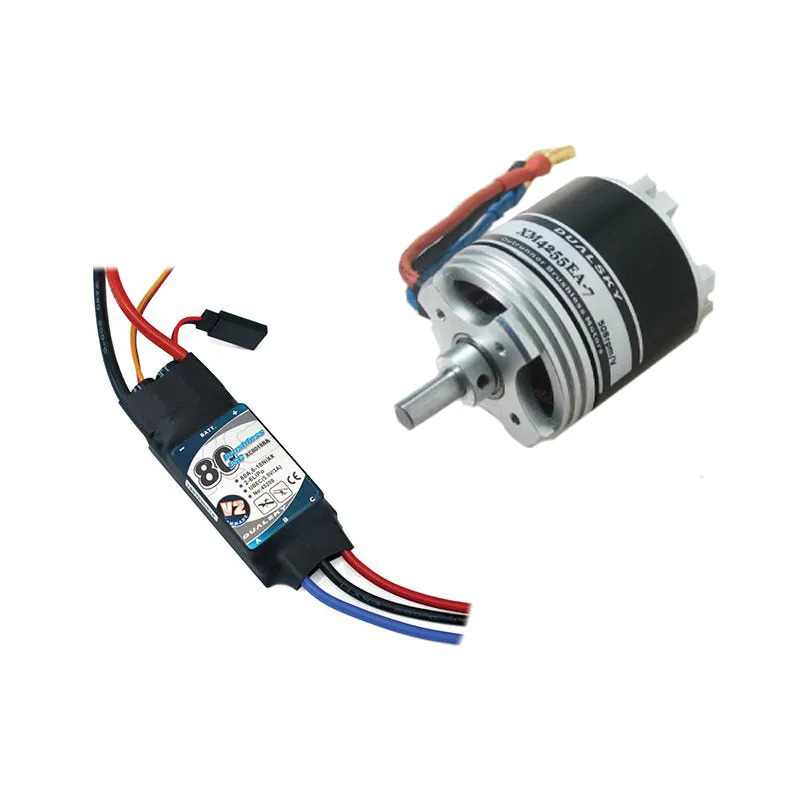

The Dualsky 50 Tuning Combo consists of a 4255EA-6 590kv motor and an 80A XC8018BA ESC. It will suit .42 to .55-class RC aircraft. It can be used with a 5-6S LiPO battery and on 6S will develop up to 1400 W of power. The perfect combo to replace a 45-55 size 2 stroke engine.

XM4255EA-8 Motor Specifications

kV
445RPM/V
Alias (Stator Diameter, Magnet Length)
3525
Weight
250.3g
Diameter
42mm
Length
49mm
Diameter of Shaft
6mm
Mounting Holes Pitch
25/25mm
Slots, Poles
12, 14
Idle Current (Io) @10V
2.0A
Resistance (Ri)
32mOhm
Cruising Power [8 mins]
574W
Bursts Current [15s]
47A
Peak Power [15s]
1044W
Recommended ESC
XC6018BA
Setup 1 (No. of Cells, Prop.)
5S, 15x8
Setup 2 (No. of Cells, Prop.)
6S, 15x6
Max. Weight of Sport Models
2.9kg
Max. Weight of 3D Models
1.9kg
Memo
.46-.55 2-stroke up to .72 4-stroke

XC6018BA ESC Specifications

Dimensions
75 x 30 x 14mm (L x W x D)
Weight
63g
Number of Cells (NiXX)
NiXX 6-18, 7.2-21.6V
Number of Cells (LiPo)
LiPo 2-6, 7.4-22.2V
Resistance (Ri) (Ohm)
0.0022
Max Cont. Current
60A
Max Cont. Output
1260W
Max Burst Current
80A
Max Burst Output
1632W
BEC/Dissipative Power
5.5V/3A (Swiching)
Programmable
Throttle + ProgCARD V2
Input Wires
120mm, 14AWG, DC3
Output Wires
75mm, 14AWG, DB4
Signal Wire
300MM JR
SKU DSTC.5A.50E
Barcode # 6941047191112
Brand Dualsky
Shipping Weight 0.0500kg
