Specifications

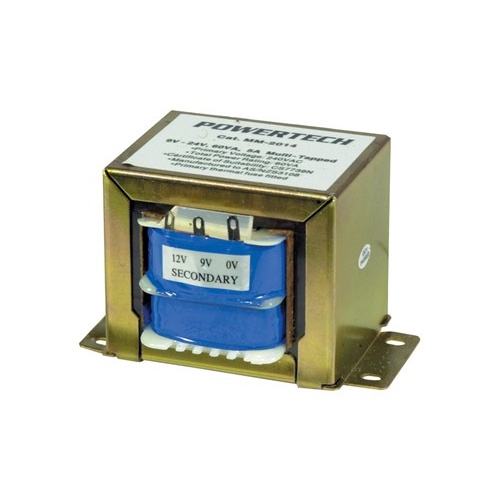

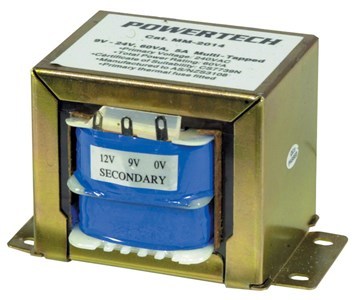

9V - 24V, 60VA, 5A Multi-tapped - Type 2167L Transformer
Type: 2167L

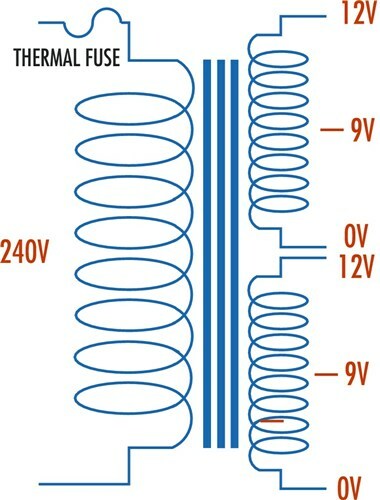

Secondary winding(s): Multi-Tapped/dual
Primary voltage: 240VAC
Total VA rating: 60VA
Secondary voltages: 12V, 9V (x2)
Secondary current (max): 2.5A (x2)
Magnetising current:: 65mA
Temp rise above ambient at rated power: 65°C
Regulation: 8%
Weight: 650g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

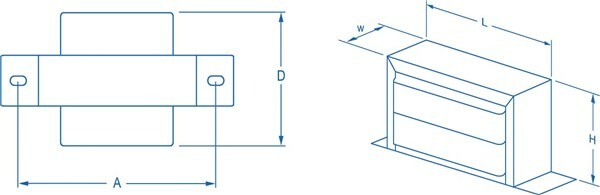

Dimensions(mm) A82 D76 L69 W48 H58



Energy Authority Certificate of Suitability No. CS:7739N
SKU AM-MM2014
Model # MM2014
Barcode # 9319236862650
