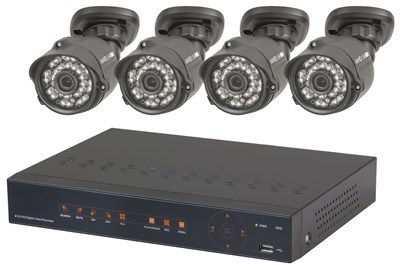

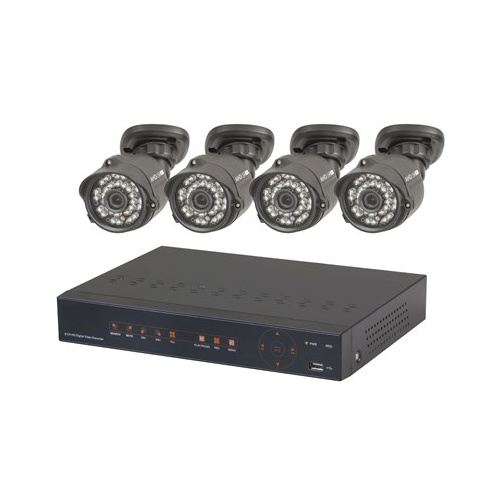

This kit comes preinstalled with a 1TB HDD and includes a set of 4 x 720p AHD day/night cameras that deliver
exceptional picture quality. With built-in IR LEDs they will continue to capture objects in the dark while their
weatherproof enclosure allows them to be installed outside. Remote viewing is possible via PC, smart phones or
tablets. Recorded footage can be easily transported offsite via USB flash drive or download over a network. Add up to 4 IP cameras. Record and view 8 AHD cameras / 4 IP cameras - requires an external switch or router.

Dropbox Cloud Storage:
Setup or use your own personal Dropbox storage account to automatically save your footage. Dropbox offers
2GB of free storage or for users who require larger storage; a subscription service is available. This allows you to retrieve footage in case your DVR is stolen or damaged.

DVR Features:
• Plug & Play (P2P) technology
• Multi-channel support
• iOS® & Android App
• Real time monitoring
• Motion triggered recording
• Motion detect email alert
• Automatic recovery after power failure
• Video loss alarm
• Password protection
• Backup to external USB drive
• Dropbox cloud storage

DVR Specifications:
Input / Output: Video: 8 Channel inputs / VGA and HDMI outputs
Audio: 8 Channel inputs / 1 Channel output (RCA)
Display Resolution: 1080p AHD (1280 x 720)
Record Resolution: 1080p (1280 x 720) @ 100fps
960H (960 x 576) @ 100fps
Frame Rate: PAL: 25fps (each ch)
Video Compression: H.264
Video System: PAL / NTSC
Feature:
Display: Single / Quad / S.E.Q.
Recording: Best / Good / Normal
Record Modes: Continuous/Manual/Motion Detect
HDD: Included: 1TB 3.5” SATA HDD
Supports: Up to 6TB SATA
Playback Search: Time & Date / Event List
USB Interface: 2 x USB 2.0 for Mouse and File Backup / Upgrade
PTZ Control: Yes
Network Interface: RJ45, 10M/100M
Network Protocol: Supports TCP/IP, UDP, DHCP, DNNS, PPPoE
IP Bandwidth: 16 - 48Mbps
Network Function: Live viewing via a standard internet browser or smartphone using Plug & Play
(P2P) setup
Backup: AVI file via USB flash
Playback Mode: Normal Play / Fast Forward / Fast Rewind / Frame by Frame
Recording Pack Time: 15/30/45/60mins Selectable
Power Supply: 12VDC, 5A
Dimensions: 300(L) x 227(W) x 53(D)mm

Camera Specifications:
Video Camera: Weatherproof, Colour
Image Sensor: 1/4” Colour CMOS
Horizontal Resolution: 720p @ 25fps
Minimum Illumination: 0.1Lux (F1.2,AGC ON) / 0.05 Lux with IR
Video Output: 1 channel BNC
Lens: 6.0mm / 3.6mm
IP Rating: IP66
Power Requirements: 12VDC, 500mA
SKU AM-QV3156
Barcode # 9319236708392
