At last! A high current DC connector.
These industry-standard connectors are used in automotive, marine, aviation, mining and most widely in industry. They are the standard electric forklift track connector for example. We stock two types. Both are sexless (hermaphroditic) connectors in that the mating of parts are neither male or female but flat and slide over each other with a self cleaning contact wiping operation. The body of the connector is cleverly designed to ensure correct polarity mating. They are ideal for high current car wiring connectors.

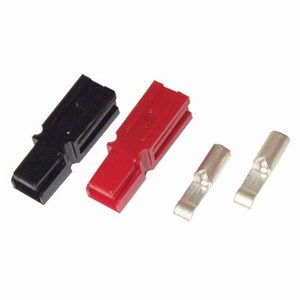

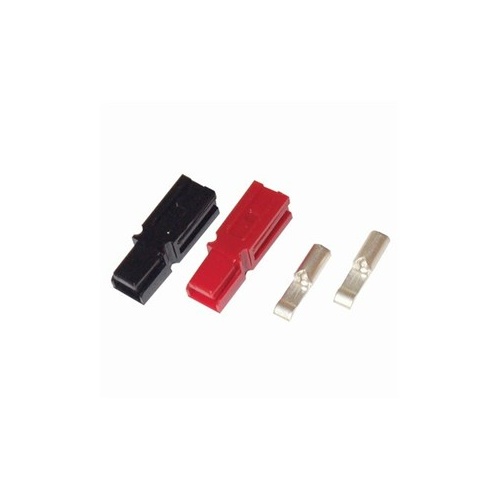

Supplied as one contact and one housing in either red or black. The contact can be crimped with suitable dies but we recommend sweat soldering for non-production applications.

75A Style
Current Rating: 75A
Voltage: 600V (AC or DC)
Contact Barrel Wire Size (min/max): 8.4 - 33.6mm2 / #6 - #16AWG
Maximum Insulation Dial to fit into back of housing: 11.10mm
Insertion Life (Cycles): 10,000 no load / 250 hot load (35A @ 12VDC)
Operating Temp: -20 - 105 degrees C
Flammability: UL94 V-O

SKU AM-PT4407
Model # PT4407
Barcode # 9319236935521
Shipping Weight 0.0500kg
