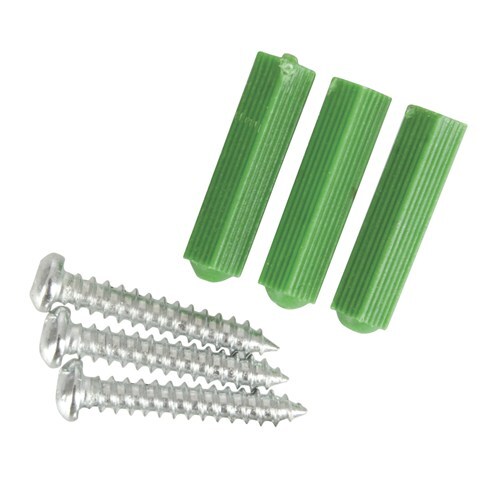

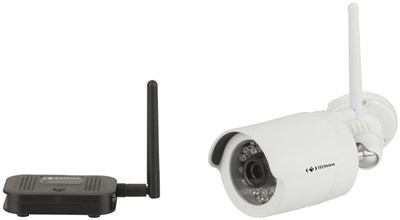

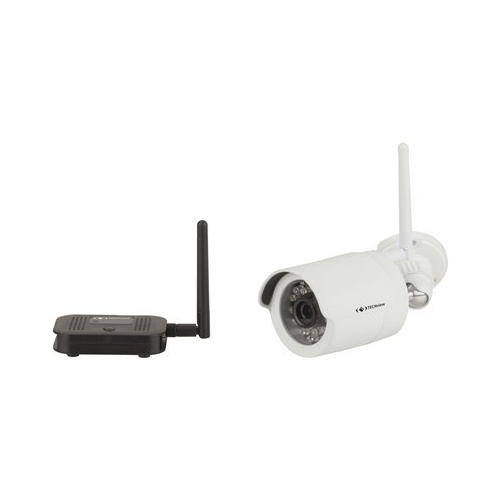

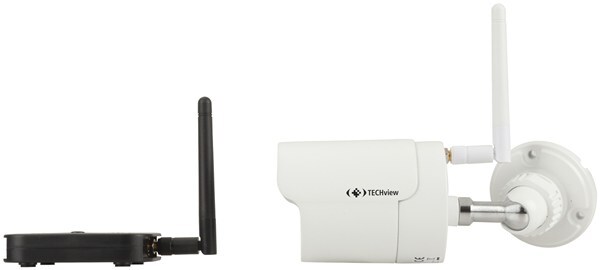

This is a universal AHD wireless camera and receiver kit, enabling you to add a wireless camera to any existing 720p or 1080p AHD compatible DVR. Using digital 2.4GHz transmission, it allows up to 100m line of sight range. The addition of a wireless camera expands the versatility of your existing AHD compatible DVR, without the need for other upgrades. The camera itself is a weatherproof bullet camera with infrared LEDs, providing clear 720p video. Includes 2 x mains power adaptors and mounting hardware.

Specifications:
Receiver:
Frequency: 2.4GHz Digital
Wireless Range: Up to 100m
Video Output: BNC
Resolution: 720p (1280 x 720)
Power: 9VDC, 600mA
Power Consumption: 240mA (Max)
Dimensions: 80(L) x 55(W) x 15(H)mm

Camera:
Camera Type: AHD
Image Sensor: 1/2.9” CMOS
Resolution: 720p (1280 x 720)
Megapixels: 1.0
Frame Rate: 15fps
Lens: 3.6mm
Lens Angle: 70°
Infrared: 24 x IR LEDs
Infrared Range: Up to 15m
Min Illumination: 0.0 Lux (IR On)
IP Rating: IP66
Power: 9VDC, 600mA
Power Consumption: 370mA (Max)
Dimensions: 164(L) x 64(Dia)mm (Including Bracket)
SKU QC8663
Model # QC8663
Barcode # 9319236731963
