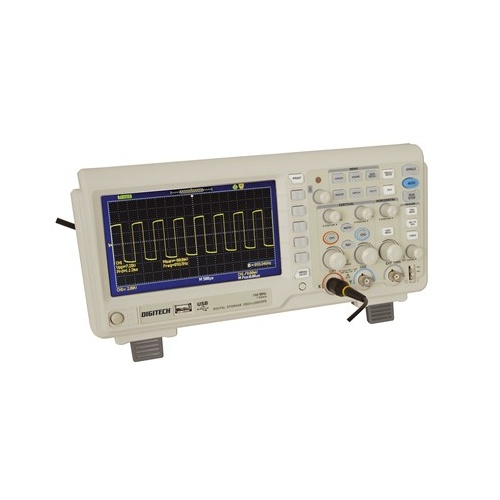

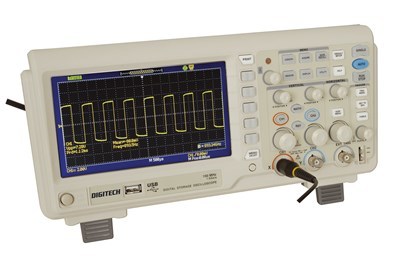

Enhanced performance, professional level test instrument for the technician, design engineer or development laboratory. Full 100MHz bandwidth to keep up with the current digital chip technology, plus a host of features that make it a cost-effective addition or upgrade to your current test equipment. Big 7 screen, smaller, lighter more portable and with a host of extra features, and it even includes a carry bag.

Features
• Digital filter function and waveform recorder function
• Pass/fail function
• Two groups of reference waveforms and 20 groups of capture waveforms
• Channel waveform and its FFT waveform on split screen
• PictBridge compatible
• Memory depth up to 2Mpts
• 1000CML series armed with waveform record function. Max. 6M record data, Max. 33.3 record hours
• New trigger types, including Edge, Pulse, Video, Slope, Alternative
• Larger measurement range, Max.10V/div
• Lighter, smaller design
• Screen-saver enables less power-consuming, prolong product lifetime
• Double windows display enlarged waveform and original waveform simultaneously
• Multi-interfaces, enable to use GPIB function with our USB-GPIBSpecifications:

Specifications
• Channels: 2
• Input impedance: 1Mohm
• Bandwidth: 100MHz
• Sampling rate: 1GSa/sec (per channel)
• Input coupling: AC, DC, GND
• Max input voltage: 400V DC+AC P-P, Cat II
• Triggers: Edge, pulse, width, video, slope, alt, delay
• Trigger modes: Auto, normal, single
• Mathematical operations: Add, subtract, multiply, divide, FFT
• FFT: Window: Hanning, Hamming, Blackman, Rectangular
• Display modes: Main, window, window zoom, scan, X-Y
• DC accuracy: ±3%Display
• Type: Colour TFT LCD 178mm
• Resolution: 480 x 234 pixels
• Colour: 64k
• Contrast: 150 to 1
• Graticule: 8 x 18 div.Vertical
• Vertical sensitivity: 2mV - 5V/div
• Vertical resolution: 8 bit
• Rise time:
• Mathematical operations: Add, subtract, multiply, divide, FFT
• FFT: Window mode: Hanning, Hamming, Blackman, Rectangular
• Sampling points: 1024Horizontal
• Range: 2.5ns - 50s/div
• Accuracy: ±50ppm over 1ms
• Dimensions: 340(W) x 150(H) x 110(D)mm
• Weight: 2.4kg
• Accessories: 2 x 10:1 probes, EasyScope 3.0 software, USB cable

SKU AM-QC1934
Barcode # 9319236965887
