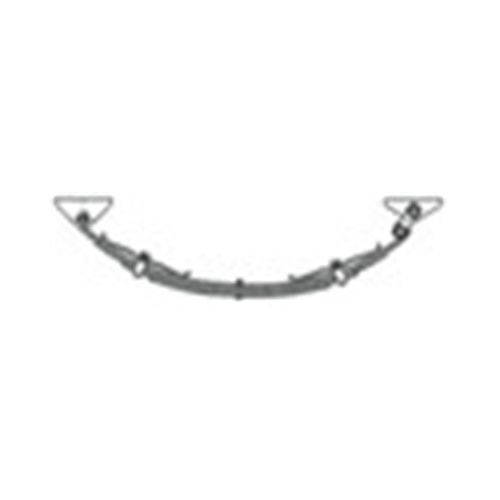

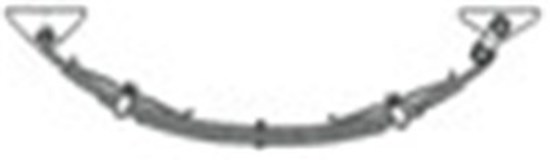

This is a truly serious spring set capable of reliably carrying heavy loads including off-road. It consists of a 7 leaf 60mm wide spring with eyes at both ends for connection to the chassis couplings. Supplied with fixed mounts for one end and the other is coupled via shackle bolts and shackle plates.

• Load rating based on two spring kits fitted to a single chassis: 1530kg
• Length of spring eye-to-eye: 841mm
• Free camber: 158mm
• Chassis frame fastening to shcakles: bolt
• Shackle bolt diameter: 16mm
• Finish: black oven enamel
• Single axle setup dimensions (no load): 865/875mm
SKU AM-TTK135
Model # TTK135
Barcode # 9319236125625
