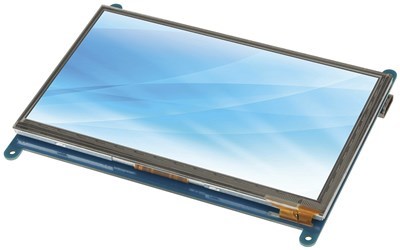

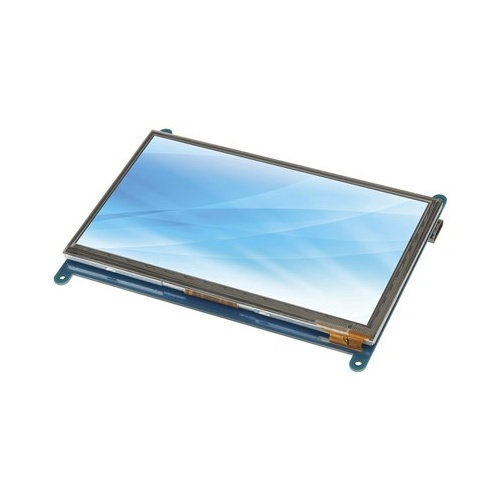

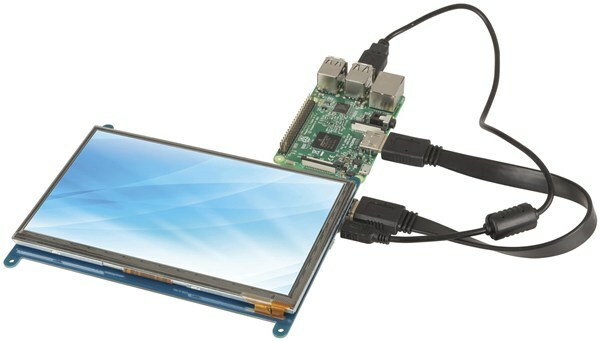

This 7 inch LCD screen has a resolution of 1024x600. It can connect directly to a Raspberry Pi as well as to any other HDMI source that supports the native 1024 x 600 resolution, via the built-in HDMI port. It also includes a capacitive touch interface. This module is designed to connect directly to the top of a Raspberry Pi, with a small HDMI double plug that locks the two together, but it can be used as a standalone display powered via the micro USB socket on the device. A back-light with switch is included. Now you can add a compact second display to your HDMI device, or make your own portable display device. Turn the Pi plus monitor combination into your own portable computer, small enough to install in a car, or even a custom 3D printed case.

Some display and driver configuration may be needed for operation. This display works with Microsoft Windows versions up to Windows 10, and supports 5 point touch input (with the exception of Windows XP which has single point touch).

Features:
- 1024x600 resolution
- Capacitive touch screen
- Switchable backlight
- HDMI input
- Powered via one of the 2 micro USB ports. The other ports is for touch support.
- Mounting tabs in each corner

Specifications:
Screen: 7”, 1024x600 Pixels
Inputs: HDMI, USB Capactive Touch
Supports: Raspbian, Ubuntu, Kodi, Windows 10 IOT or XP (one touch point), Windows 7, Windows 8 and Windows 10 (5 Point Touch)
Touch: Five-Point Capacitive
Weight: 380g
Dimensions: 165(W) x 124(H)mm
SKU AM-XC9026
Model # XC9026
Barcode # 9319236735428
