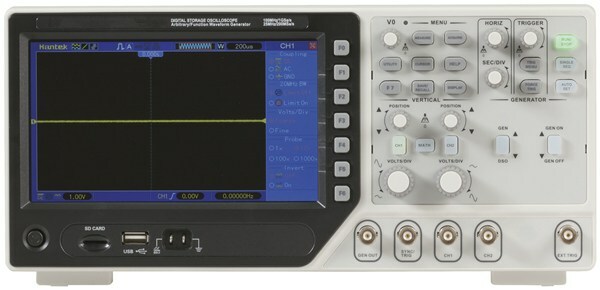

Gone are the days of bulky cathode ray oscilloscope (CRO)s. This is a lightweight and compact unit featuring a large 7-inch colour-LCD for detailed readings. It also includes a waveform generator for various testing applications. Grab your favourite USB drive to provide digital storage capabilities, or expand beyond the unit itself. By connecting to it to your computer via the provided USB cable, you can use the included software for even greater control and data storage options.

Features:
- Two channel
- High accuracy
- Waveform generator

Specifications:
Channels: 2
Input impedance: 1M?
Bandwidth: 100MHz
Sampling rate: 1G Sa/Sec
Input coupling: AC / DC / GND
Max input voltage: 300VRMS AC/DC Max
Triggers: Edge, Video, Pulse, Slope, Over time, Alternative
Trigger modes: Auto, Normal, Single
Mathematical operations: Add / subtract / multiply / divide / FFT
DC accuracy: +/- 3%
Data record function: Yes
Memory depth: 40k

Display:
Type: 7” colour TFT LCD
Resolution: 800 x 480
Colour: 64k
Contrast: Adjustable
Graticule:

Vertical:
Sensitivity: 2mV/div - 5V/div
Resolution: 12bit
Rise time: 3.5ns
Mathematical operations: Add / subtract / multiply / divide / FFT
FFT: Windows: Hanning, Flatop, Rectangular, Bartlett, Blackman; 1024 sample point

Horizontal:
Range: 4ns/div - 40s/div
Accuracy: +/-50ppm > 1ms interval

Other:
Dimensions: 320(W) x 150(H) x 125(D)mm
Weight: 2kg
Accessories: 2 x 1-:1 probes, software, USB cable
Bandwidth: 100MHz / 25MHz
Sample Rate: 1GSa/s / 200MSa/s

SKU AM-QC1936
Model # QC1936
Barcode # 9319236715437
