Specifications

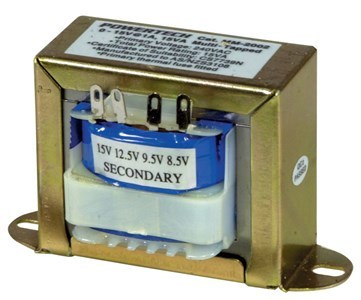

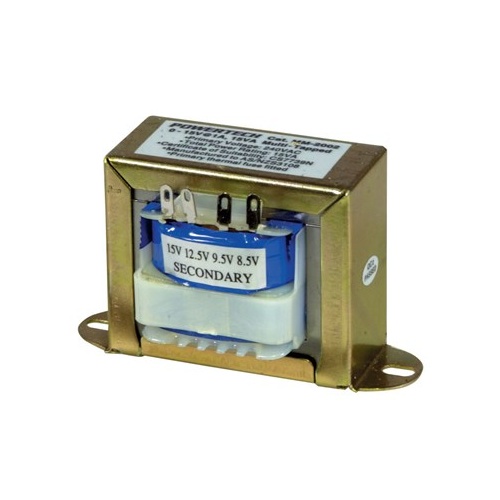

6.3-15V, 15VA, 1A Multi-Tapped - Type 2155
Type: 2155
Secondary winding(s): Multi Tapped
Primary voltage: 240VAC
Total VA rating: 15VA

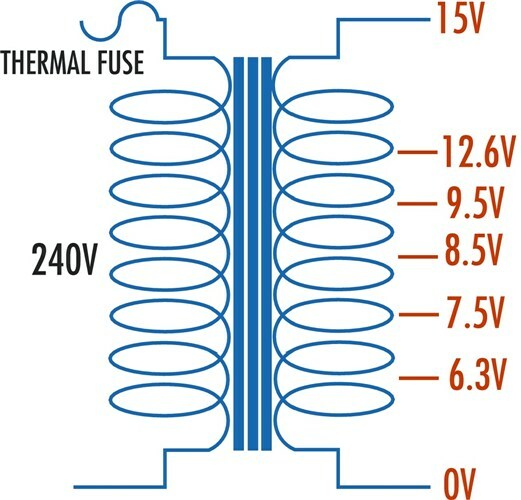

Secondary voltages: 15V, 12.6V, 9.5V, 8.5V, 7.5(CT), 6.3V(CT)
Secondary current (max): 1A
Magnetising current:: 30mA
Temp rise above ambient at rated power: 45°C
Regulation: 10%
Weight: 665g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

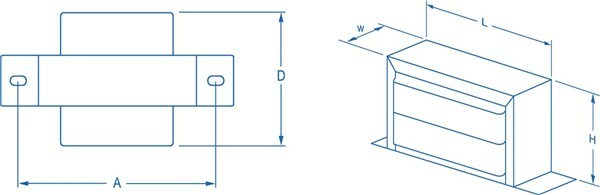

Dimensions(mm) A72 D52 L59 W32 H51
SKU AM-MM2002
Model # MM2002
Barcode # 9319236012024
