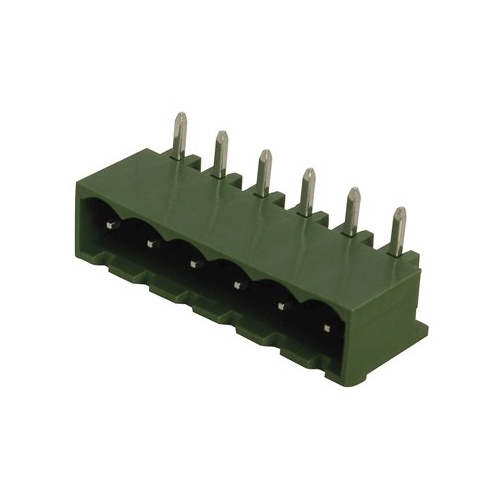

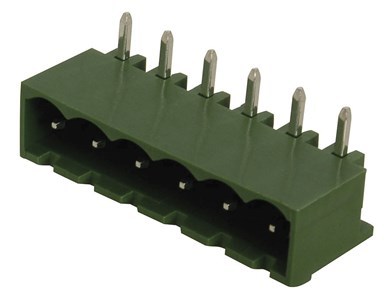

Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks.
- Made from Polyamide66 plastic (UL94V- 0)
- 1.0mm tin- plated brass solder pins
- Excellent current and insulation characteristics.

Specifications:
- Current rating: 12A, 300VAC
- Insulation withstands volt: 2000VAC min
- Insulation resistance: >5000M500VDC
- PCB hole diameter: 1.5mm
- Pitch: 5.08mm (0.200 inch)
- Poles 6
SKU AM-HM3106
Model # HM3106
Barcode # 9319236838822
