Specifications

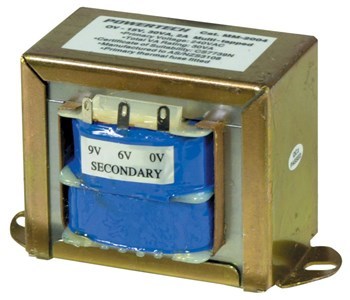

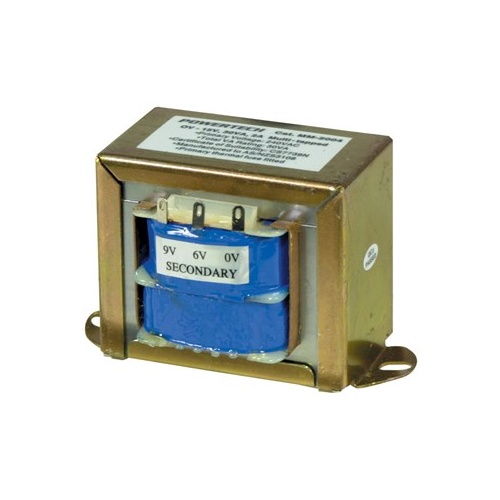

6-15V, 30VA, 2A Multi-Tapped - Type 2156 - Transformer
Type: 2156
Secondary winding(s): Multi-Tapped
Primary voltage: 240VAC
Total VA rating: 30VA

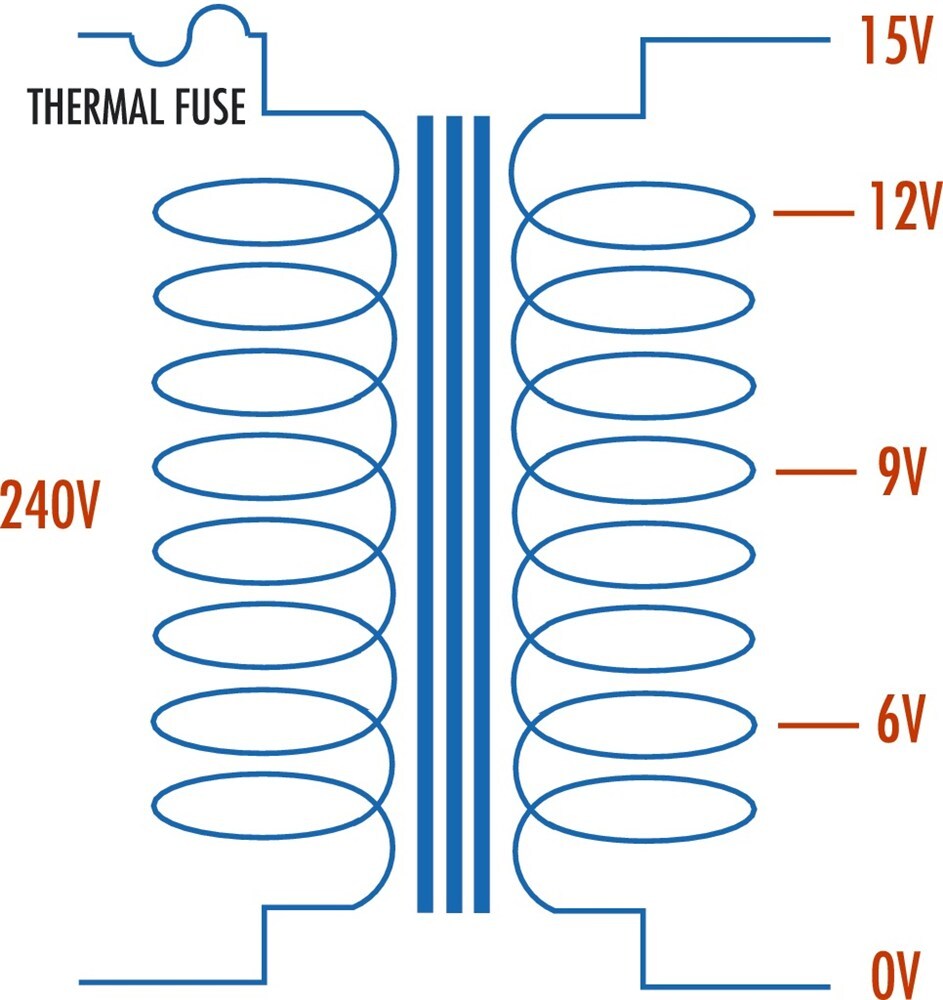

Secondary voltages: 15V, 12V, 9V, 6V(CT)
Secondary current (max): 2A
Magnetising current:: 60mA
Temp rise above ambient at rated power: 60°C
Regulation: 10%
Weight: 920g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

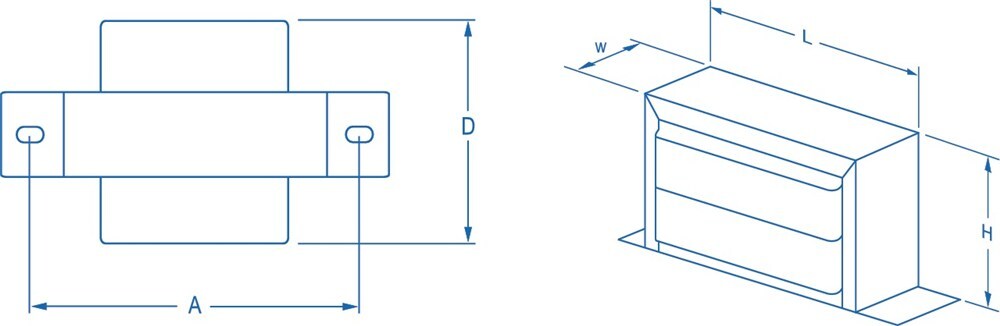

Dimensions(mm) A82 D60 L69 W35 H59
SKU AM-MM2004
Model # MM2004
Barcode # 9319236012031
