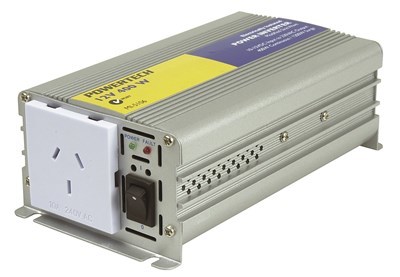

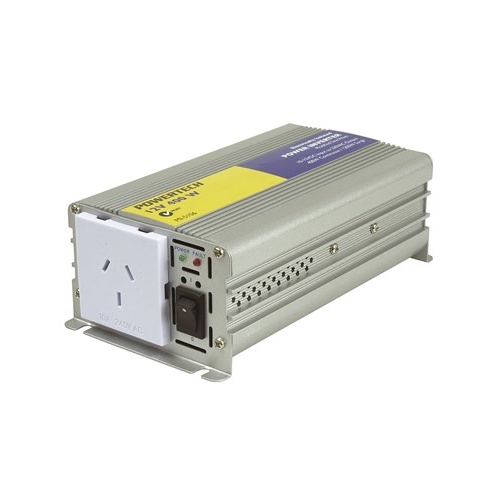

It will deliver up to 400 watts of continuous power, while supplying surge currents up to a massive 1200 watts. DC input is through an 850mm lead with alligator clips. It features two inline 25A fuses (in parallel) and the output is a standard 3 pin mains socket. There is a rocker on/off switch, and LED indicators for power and fault. This unit also features fan assisted cooling.

Typical Applications:
Laptop computers, recharging power tools or batteries, lamps and fluorescents up to 400W, 54cm televisions, 100W Halogen worklight, electric fan, fax machines etc.

Specifications:
Output Power Continuous: 400W
Output Power Surge: 1200W
Standby Current: < 300mA
Input Voltage: 12VDC
Output Wave Form: Modified Sine Wave
Efficiency: > 90%
Size: 190(L) x 91(W) x 58(H)mm
Weight: 1.2kg

Circuit Protection:
Thermal Shutdown and Alarm: 60°C +/- 5°C (Automatic Recovery)
Battery Low Alarm: 10.5VDC +/- 0.5VDC
Battery Low Shutdown: 10.0VDC +/- 0.5VDC
High Battery Shutdown: 15.5VDC +/- 1VDC
External Fusing: 50A Maximum

SKU AM-MI5106
Barcode # 9319236905388
