MB3703

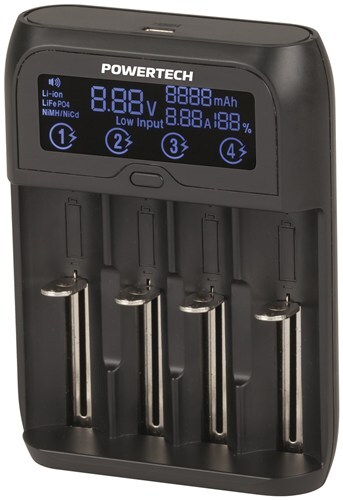

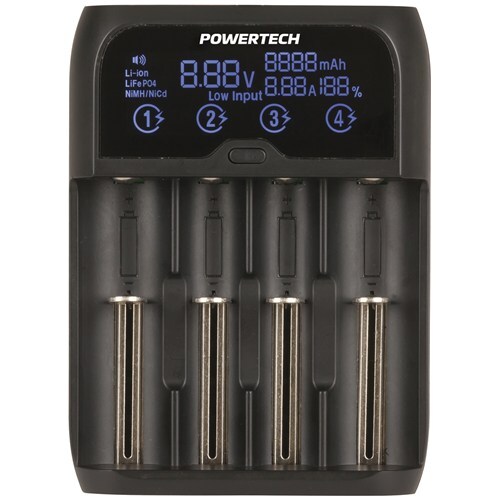

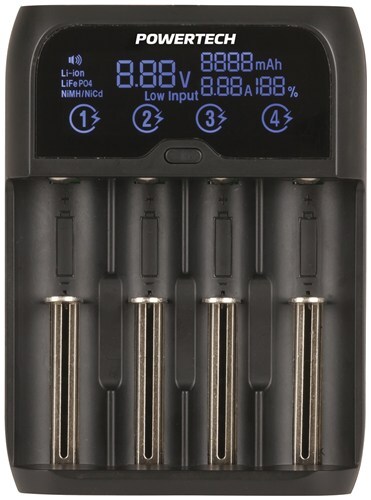

This intelligent charger has four independent charging slots to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells at the same time. The microprocessor monitors each battery and provides a safe and effective charge using precise Pulse Width Modulation (PWM) technology. A single Li-ion or LiFePO4 cell can also be fast charged at up to 2A. The high contrast LCD screen provides real-time battery monitoring, including charging current (A), charging capacity (mAh), voltage (V) and battery power (%). Features include alarm and error messages for bad batteries, reverse polarity protection, short circuit, over-charge, and over-temperature. Power comes from an available USB port using the supplied USB Type-C power cable.

Features:
• Suits Ni-MH, N-Cd, Li-ion & LiFePO4
• Intelligent fast charging up to 2A
• Independent charging slots
• LCD screen

Supported Batteries:
3.6-3.7V Li-ion
3.2V LifePO4
1.2V Ni-MH/Ni-Cd

Width : 96.00000000mm
Height : 129.00000000mm
Depth : 32.00000000mm
Weight : 170.00000000g
USB Voltage Input : 5.00000000V, 5.00000000V
USB Input Current : 2.00000000A, 2.00000000A
USB Item Connection : Type C
USB Lead included : true
Type of Batteries : Nickel Metal Hydride (Ni-MH), Nickel Cadmium (Ni-Cad), Lithium Ion, Lithium Ferrous Phosphate (LiFePO4)
Cell Type(s) Charged : AA, AAA, Sub-C, C, 10440, 14500, 16340, 17335, 17500, 17670, 18350, 18650, 22650, 26500, 26650, 14650, 18500, 18700, 20700, 21700, 22700
Number of Cells : 4.00000000pc
Multi-cell Charging Conditions : Independent Charge Control for Each Battery Slot
Charger Output Voltage : 4.20000000V, 3.65000000V, 1.48000000V
Charger Output Current : 2.00000000A, 1.00000000A, 650.00000000mA, 500.00000000mA
Controller Type : PWM
Reverse Polarity Protection : true

SKU AM-MB3703
Barcode # 9319236756645
Brand POWERTECH
Shipping Weight 1.0000kg
