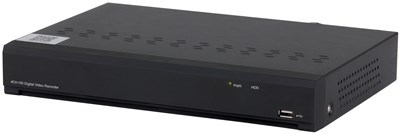

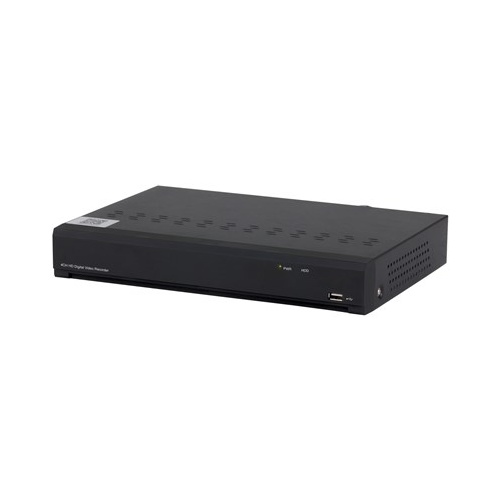

This is a powerful surveillance system for many applications, with clear 720p resolution capabilities.
The DVR can also provide recording of an additional two ONVIF IP cameras (not included) for additional
versatility. The DVR features plug and play P2P technology, making the QR code setup easy. It also has a 500GB HDD for recording video footage, and off-location Dropbox photo backup for the ultimate safeguarding of your data.

Box Contents:
1 x 720p DVR
1 x USB Mouse
1 x Remote Control
1 x Mains Power Adaptor
1 x Software CD

Features:
. Free Android & iOS® Smartphone App
. Add 2 Additional IP Cameras
. Record & Playback Simultaneously
. Easy QR Code Setup
. Dropbox Photo Backup
. Motion Detection, Manual & Scheduled Recording
. Password Protection
. Motion Detection Email & Push Notification Alerts
. External USB Backup
. Video Loss Alarm

DVR Specifications:
DVR Type: AHD/TVI/CVI/IP/CVBS (Analogue)
Channels: 4 Analogue / 2 IP
Inputs: 4 x BNC (Video)
            4 x RCA (Audio)
Outputs: 1 x HDMI (Video & Audio)
              1 x VGA (Video)
              1 x RCA (Audio)
Analogue Display Resolution: 1080N (960 x 1080) @ 15fps
                                           720p (1280 x 720) @ 15fps
                                           960H (960 x 576) @ 25fps
IP Display Resolution: 1080p (1920 x 1080) @ 15fps
                                 720p (1280 x 720) @ 25fps
Analogue Recording Resolution: 1080N (960 x 1080) @ 15fps
                                               720p (1280 x 720) @ 15fps
                                               960H (960 x 576) @ 25fps
IP Recording Resolution: 1080p (1920 x 1080) @ 15fps
                                     720p (1280 x 720) @ 25fps
Video Format: DVR
Video Compression: H.264
Display: Single / Quad / Sequence
Hard Drive: 500GB (Included)
Hard Drive Capacity: Up to 6TB 3.5” SATA
Recording Modes: Motion, Manual, Scheduled
Recording Time: Up to 18 Days (960H x 4 Channels)
USB Interface: 2 x USB 2.0 Ports (Mouse/Backup/Upgrade)
IP Cameras: Up to 2 x ONVIF 720p/1080p IP Cameras
IP Bandwidth: Up to 18Mbps
Network Interface: Ethernet, RJ45 10/100Mbps
Network Protocol: DHCP, PPPoE, DDNS, TCP/IP, UDP
Network Function: PC Software / Internet Browser / Smartphone App
PTZ Control: RS-485
Power Supply: 12VDC, 2A
Dimensions: 300(L) x 227(W) x 53(D)mm
SKU AM-QV3161
Barcode # 9319236730461
