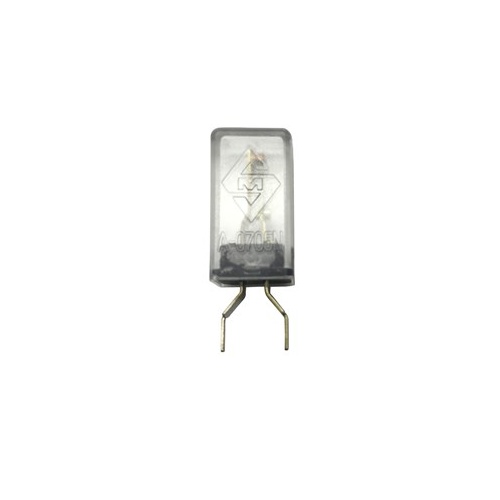

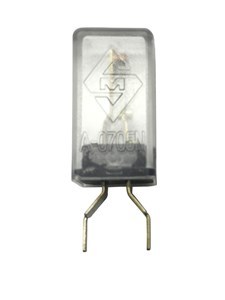

Miniature auto- resetting thermal type units that solder directly into a PCB.
- Ideal for protecting power supplies, amplifier output transistors, appliances etc.
- Slow response time is ideal when capricious tripping would be a nuisance.
- Judicious selection of breaker rating will ensure protection without unnecessary tripping.

Specifications:
Calibration: 100% rated; will not trip.
(all at 25°C)
101- 170% increasing likelihood of trip.
175- 199% trip within 1 hour.
200% within 1 minute.
200% + from 1 minute to seconds.
Input: 12VDC, 125VAC
Dielectric Strength: 1500VAC 1 Minute
Contact Endurance: >1000 cycles, @ 150% of contact rating.
Contact Rating: 3A
Contact Resistannce: 0.075ohms
SKU AM-SF2283
Model # SF2283
Barcode # 9319236837429
