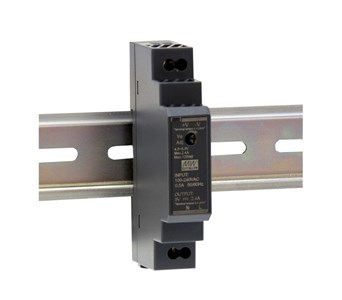

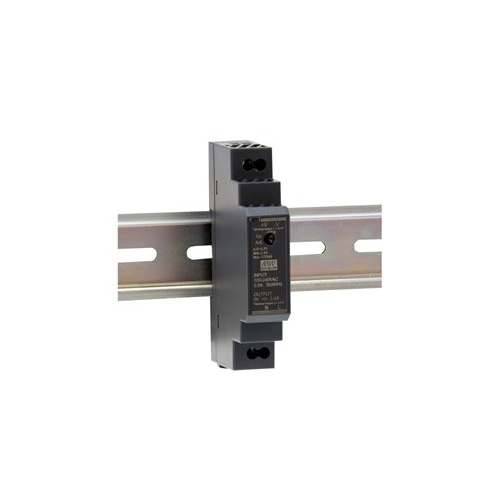

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (±10%) DC output voltage, and a working temperature range of -30ºC to +70ºC. Typical applications include building automation, household control system, industrial control system, factory automation and electro-mechanical apparatus.

Features:
• Ultra slim design with 17.5mm(1SU) / 35mm(2SU) / 52.5mm(3SU) width
• Universal input 85~264VAC
• No load power consumption < 0.3W
• Isolation class II
• Pass LPS (limited power source)
• DC output voltage adjustable
• Short circuit / overload / over voltage protections
• Cooling by free air convection (working temperature: -30~+70°C)
• DIN rail TS-35/7.5 or 15 mountable
• LED indicator for power on

Specifications:
Output Voltage: 12VDC Adjustable
Ripple & Noise: 120mV
Output Current: 2.0A
Efficiency: 88%
Input Voltage: 85 ~ 264VAC, 120 ~ 370VDC
Input frequency: 47 ~ 63Hz
Cold Start Inrush Current: 45A @ 230VAC
DIN Rail Compatibility: TS35/7.5 or 15 mountable
Dimensions: 90(L) x 35(W) x 54.5(D)mm

SKU AM-MP3156
Model # MP3156
Barcode # 9319236716106
