Specifications

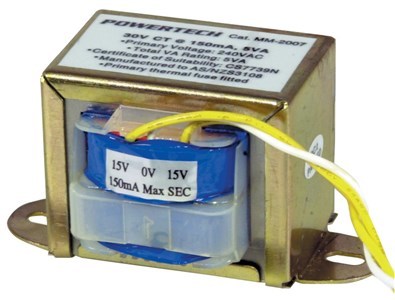

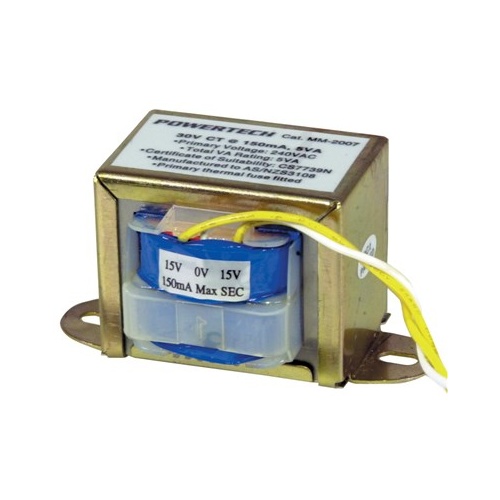

30V CT, 4.5VA, 150mA Centre Tapped - Type 2855
Type: 2855

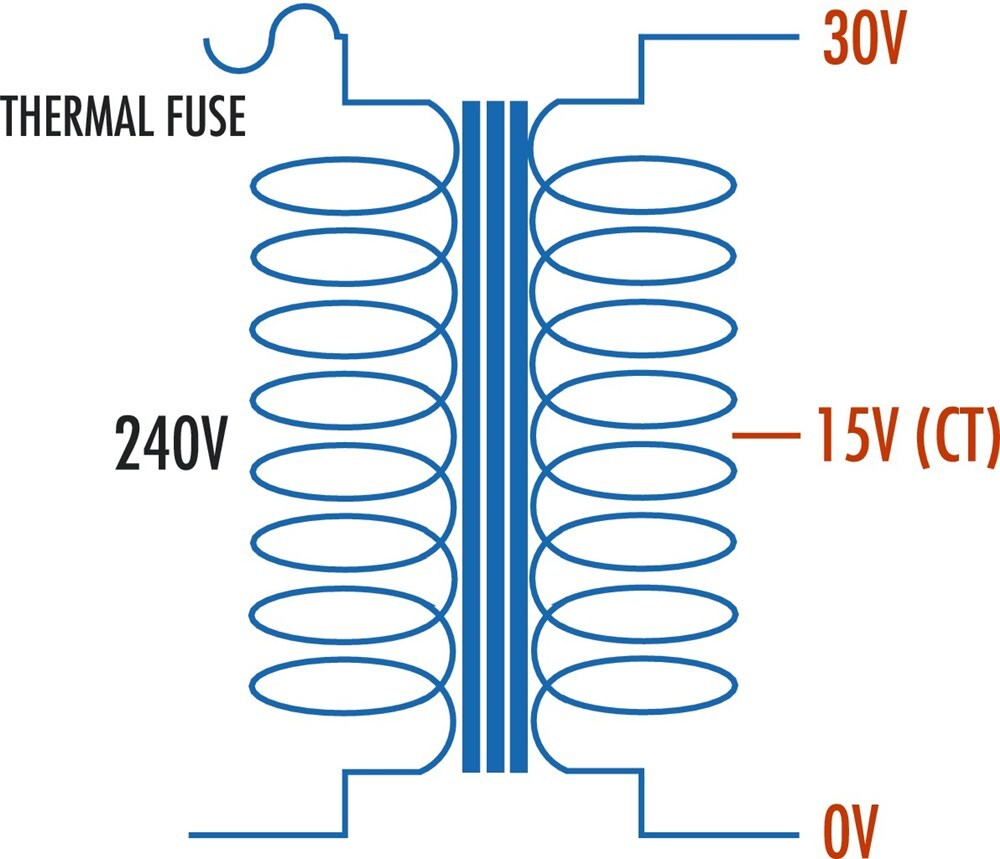

Secondary winding(s): Centre tapped
Primary voltage: 240VAC
Total VA rating: 4.5VA
Secondary voltages: 30V, 15V(CT)
Secondary current (max): 150mA
Magnetising current:: 40mA
Temp rise above ambient at rated power: 40°C
Regulation: 8%
Weight: 280g
Primary connection 200mm Fly Leads
Secondary connection 200mm Fly Leads
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

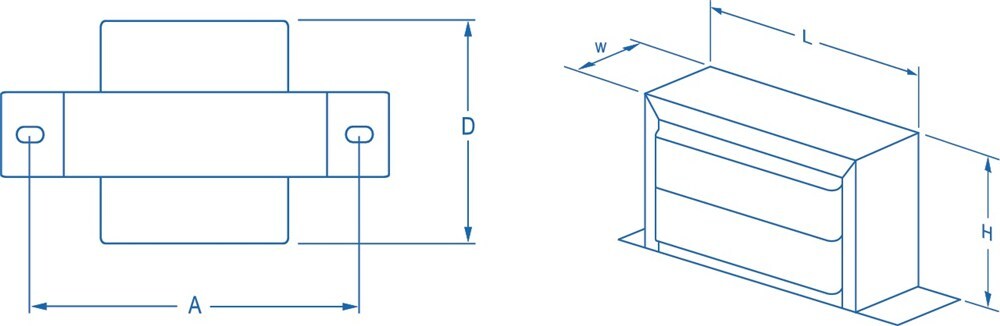

Dimensions(mm) A53 D44 L43 W28 H36



Energy Authority Certificate of Suitability No. CS:7739N
SKU AM-MM2007
Model # MM2007
Barcode # 9319236017920
