These industry standard connectors are used in automotive, marine, aviation and mining applications and are used widely in industry. They are genderless which means that there is no separate plug and socket and can be easily stacked to make custom configurations. UL rated to 30A DC, they are compact enough to fit in tight places but rugged enough to handle most current loads.

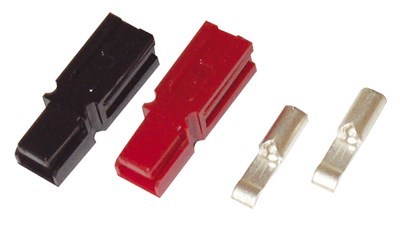

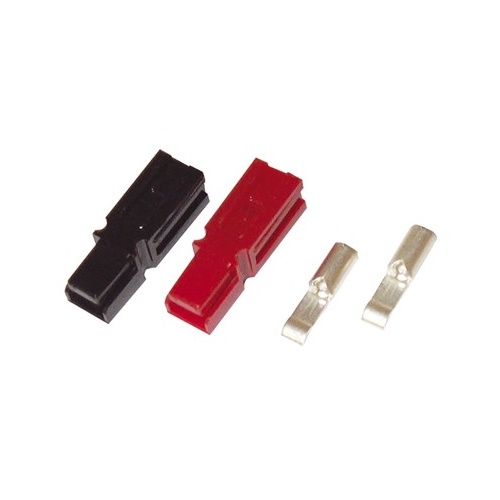

Supplied as a red and black pair with contacts.

Specifications:
• Contact Rating: 30A
• Voltage: 600V (AC or DC)
• Contact Wire Size: 2.1mm2- 5.3mm2 (#10-#14 AWG)
• Max Wire Insulation Diameter: 4.4mm
• Contact Retention Force: 9kgs (20lbs)
• Operating Temperature: -20 to +105°C

SKU AM-PT4405
Model # PT4405
Barcode # 9319236920411
Shipping Weight 1.0000kg
