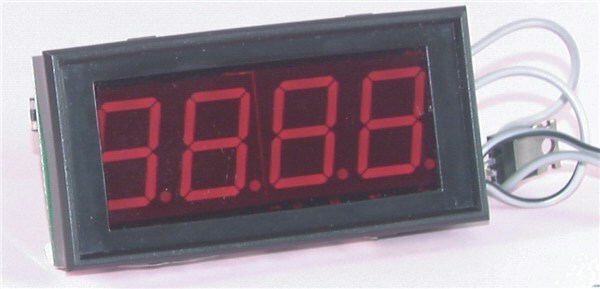

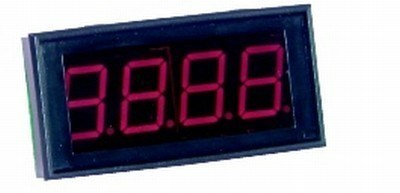

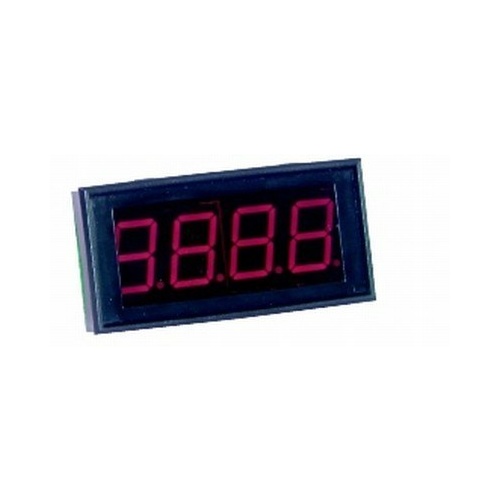

This is not just a digital display, but a fully functional high impedance digital panel meter that only requires power to operate. It will measure voltages from 200mV to 500VDC (jumper selectable) and has a maximum count of 1999. The module is suitable for a host of applications and can be used as a voltmeter or adapted for use as a current meter, thermometer etc. The decimal point location can be selected with a jumper and the module uses an easy plug- in fixing method. The meter shares a common ground with the voltage being measuredSpecifications:- Supply voltage: 5VDC (common ground) @ 60mA,- Input impedance: >10 M ohm, accuracy ± 0.5%.- Module measures: 85 x (W) x 42 (H) x 25 (D)mm- Digit height: 20mm.
SKU AM-QP5585
Model # QP5585
Barcode # 9319236851395
