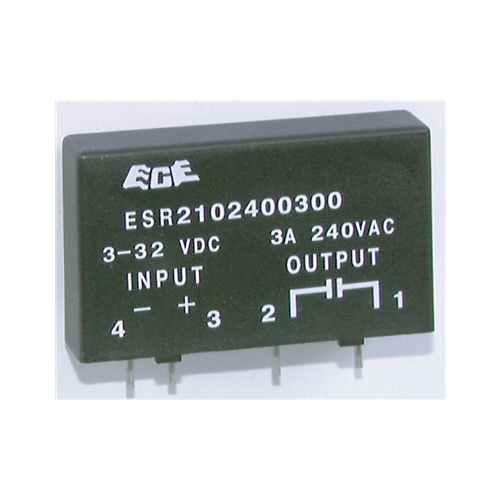

This is a PCB mounting, single in line package relay capable of switching up to 240V AC at 3 amps. Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, the relays feature high surge ratings to allow lamp and motor switching plus zero voltage turn- on and zero current turn off to minimise EMI and RFI emissions. Use this relay in conjunction with our remote control switches for safe 240V AC mains switching.Specifications:Input Circuit- Control Voltage Range: 3- 32V DC- Control Current: 15mA Max- Min. turn off voltage: 1V DC- Input Resistance: 2.2kohm min. Output Circuit - Max load current: 3A- Nominal Line Voltage: 240V AC - Load Voltage Range: 24- 280V AC- Min. Blocking Voltage: 600V AC - Max one- cycle surge current: 80A- Min. Load current: 50mA - Dimensions:10(D) x 42(W) x25(H)mm.
SKU AM-SY4080
Model # SY4080
Barcode # 9319236070284
