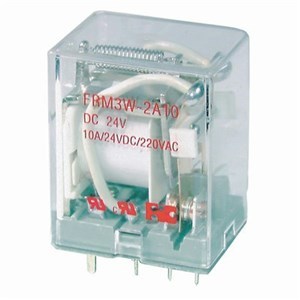

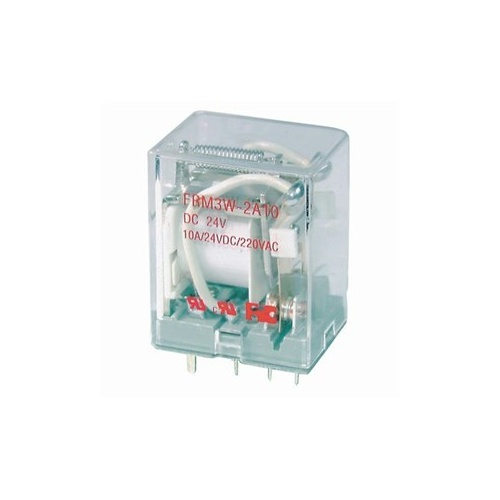

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB.

Specifications:
• Rated coil voltage: 24VDC
• Coil current: 37mA
• Coil resistance: 650 ohms
• Contact configuration: DPDT
• Contact rating DC: 24VDC 10A
• Contact rating AC: 240VAC 10A (resistive load)
• Operate time: 25ms max
• Must operate voltage: 19.2VDC
• Operational life: 20 million cycles
• Size: 27 x 20 x 35(H)mm

SKU AM-SY4007
Model # SY4007
Barcode # 9319236951835
