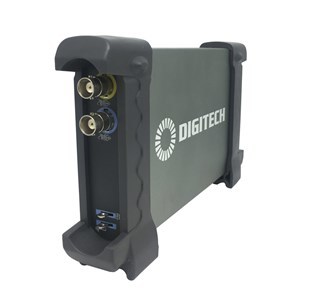

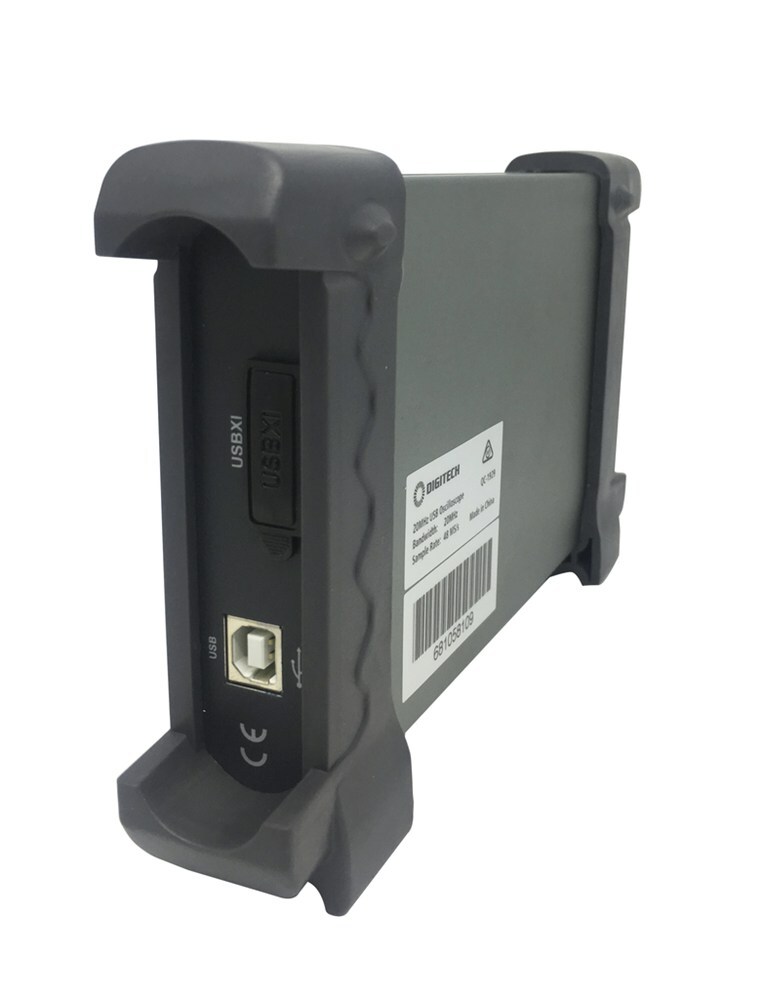

This unit does away with more of the hardware and provides a highly accurate interface to allow software to provide the display. It still provides 20MHz bandwidth and high accuracy and physical probe couplings, but takes up a fraction of the bench-space. Use the included software to provide just about all standard oscilloscope functions, and even output waveforms to excel/word files. Convenient function in a small form factor, ideal for the traveling or compact workbench.

Features:
- USB interface plug & play
- Automatic setup
- Waveforms can be exported as Excel/Word files
- Spectrum analyser (FFT)
- External trigger input
- Cursor measurements

Specifications:
Channels: 2
Input impedance: 1M?
Bandwidth: 20MHz
Sampling rate: 48M Sa/Sec
Input coupling: DC
Max input voltage: ???
Triggers: Rising edge / falling edge
Trigger modes: Auto, Normal, Single
Mathematical operations: Add / subtract / multiply / divide / FFT
Sensitivity: 10mV/div - 5V/div
Resolution: 8bit
DC accuracy: +/- 3%
Operating Systems: Windows 2000/XP/Vista/7/8
Dimensions: 206(W) x 123(D) x 37(H)mm
Weight: 453g
Accessories: 2 x 10:1 probes, software, USB cable
SKU AM-QC1929
Model # QC1929
Barcode # 9319236715413
