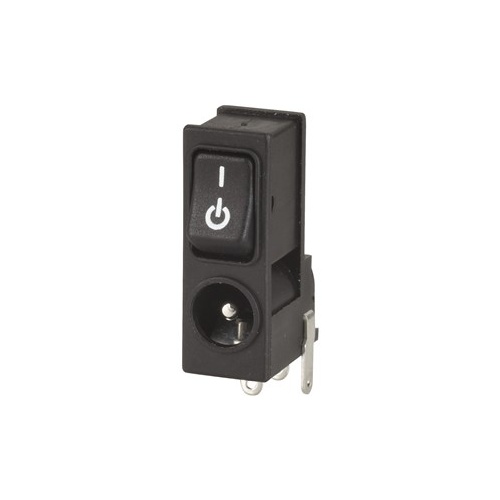

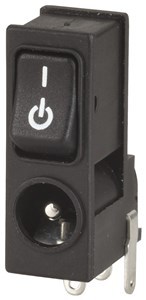

Snap-in, PCB mounted 2.1mm DC power socket with SPST black rocker switch.

Electrical rating: 5A @ 15VDC
Contact resistance: <20m ohm (initial)
Insulation resistance: 1000M ohm (500VDC between open contacts)
Dielectric strength: >1500V 1 minute
Electrical life: 6,000 cycles

Button dimensions: 10.1(L) x 6.3(W) x 2.82(D)mm
Overall dimensions: 24.5(L) x 9.0(W) x 14.1(D)mm
SKU AM-PS0531
Model # PS0531
Barcode # 9319236245101
