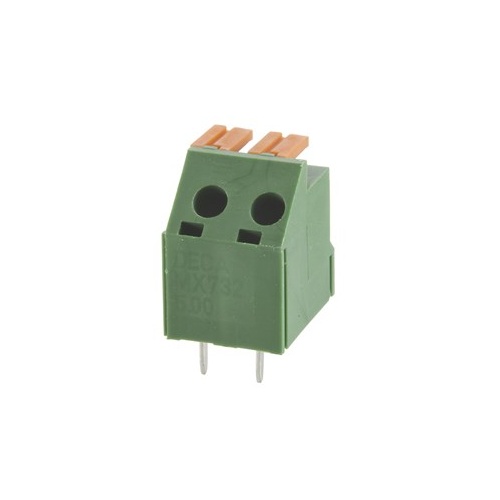

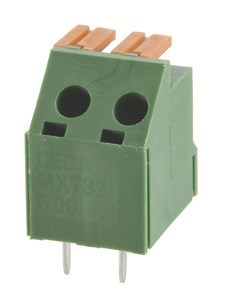

These PCB terminal blocks retain the wire securely by a spring type clamp. The wire is held very securely but can be quickly released by depressing a release lever. The wire can be inserted/released indefinitely with virtually no deterioration of the contact/spring assembly. Both 2 & 3 pole are available and the housing of each is dove tailed to stack together and make any number of poles.

• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Current rating 12.0A @ 300VAC
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
• Dimensions: 10(L) x 13(W) x 15(H)mm

Also available:
HM3142 - 3 Way Spring Terminal Block
SKU AM-HM3140
Model # HM3140
Barcode # 9319236986080
