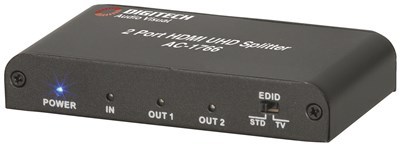

These HDMI UHD splitters with HDCP 2.2 are an advanced solution for splitting a single HDMI input to two HDMI outputs (AC-1766) and four HDMI outputs (AC-1768). They provide high performance audio and video output through HDMI cables up to 4K2K resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Features AC-1766:
•    Compliant with HDMI2.0, HDCP2.2 and DVI1.0
•    Support video format up to 4k2k @ 30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k @ 60Hz with 12 bit YCBCR 4:2:0
•    Support 3D frame sequential video format up to 1080p@60
•    Support high resolution VESA mode video format up to QSXGA @ 60Hz
•    Supports LPCM 7.1CH, Dolby® TrueHD, and DTS-HD Master Audio
•    Support smart auto switch
•    IR and panel button control
•    Input: 1 x HDMI
•    Output: 2 x HDMI

Features AC-1768:
•    Compliant with HDMI2.0, HDCP2.2 and DVI1.0
•    Support video format up to 4k2k @ 30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k @ 60Hz with 12 bit YCBCR 4:2:0
•    Support 3D frame sequential video format up to 1080p@60
•    Support high resolution VESA mode video format up to QSXGA @ 60Hz
•    Supports LPCM 7.1CH, Dolby® TrueHD, and DTS-HD Master Audio
•    Support smart auto switch
•    IR and panel button control
•    Input: 1 x HDMI
•    Output: 4 x HDMI

SKU AM-AC1766
Model # AC1766
Barcode # 9319236487020
