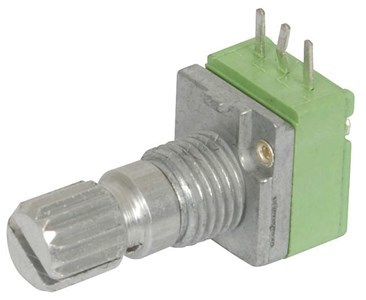

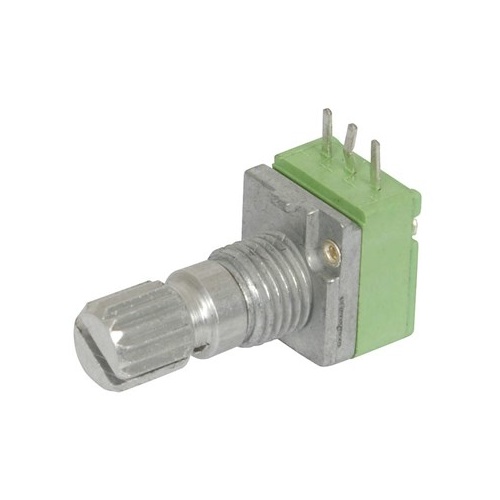

These pots are rapidly becoming the industry standard for miniaturised audio, digital and telecommunications equipment. This series features good solder bath immersion resistance, 300° rotation and standard 18 tooth metric pre- cut actuator shafts. Two popular metric knobs are now carried, however metric knobs are now commonly available. Both single and dual gang types are stocked in log and linear resistance tapers. Electus will be strongly supporting this product range. OEM inquiries for special configurations welcome.Electrical Linear Taper (B) Other Taper- Rated Wattage: 0.05W 0.02W- Rated Voltage: 50VAC 50VAC- Slider Noise: <100mv- insulation resistance:>100Mat 250VDC- Dielectric: 300VAC/Minute- Tracking Error: Within 3dB at 40~0dB- Mechanical Rotation Angle: 300° +/- 5°- Rotation Torque: 20~250gf.cm- Shaft Stop Strength: 5kgf.cm/min.Value1K
SKU AM-RP8504
Model # RP8504
Barcode # 9319236850824
