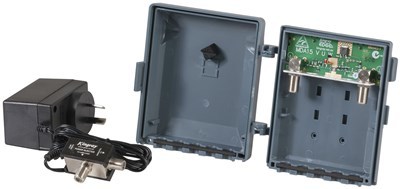

A wideband masthead amplifier with a very low noise figure and an output figure comparable to many distribution amplifiers. Designed to be powered by a DC power supply, (AC power supplies are not suitable). A solution for all installations, especially in problem reception areas.

Specifications:
 • Frequency: 174-694MHz
 • Gain: 15dB
 • Gain Control: VHF 10dB, UHF 6dB
 • Noise Figure: <2.0dB
 • Output Figure: 113dB @ -60dBIMR Din45004B
 • Return Loss: >10dB
 • Supply Voltage: 12-24VDC
 • Filters: 174MHZ HP, 694MHz LP
 • Inputs: 1

Includes PSK06F power supply.

SKU AM-LT3257
Model # LT3257
Barcode # 9319236715116
