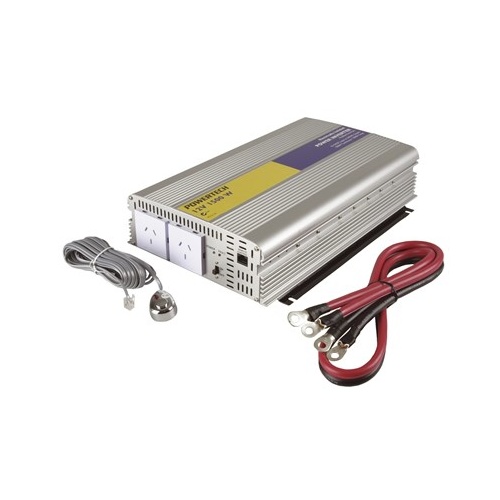

This inverter is electrically isolated between the battery and secondary voltage. This allows earthing of both DC and AC circuits when required. It will deliver up to 1500 watts of continuous power, while supplying surge currents up to a massive 3500 watts. DC input is through two 850mm, 6 gauge leads. The output is two standard 3 pin mains sockets. There is a rocker on/off switch, and LED indicators for power and fault. This unit also features fan assisted cooling.
Typical Applications:

Lamps and flourescents up to 1500W, 68cm televisions and VCRs, power drills, blenders, belt sanders, computers etc.

Specifications:
Output Power Continuous: 1500W
Output Power Surge: 3500W
Standby Current: Input Voltage: 12VDC
Output Wave Form: Modified Sine Wave
Efficiency: >90%
Size: 395(L) x 240(W) x 90(H)mm
Weight: 6.2kg

Circuit Protection:
Thermal Shutdown and Alarm: 60°C +/-0.5°C (Automatic Recovery)
Battery Low Alarm: 10.5VDC +/- 0.5VDC
Battery Low Shutdown: 10.0VDC +/- 0.5VDC
High Battery Shutdown: 15.5VDC +/- 0.5VDC
External Fusing: 210A Maximum

SKU AM-MI5114
Barcode # 9319236905432
