Critical systems should ideally be connected to some form of backup power in the event of a blackout, power surge or brownout. A fault at the grid may drop the voltage at the mains, which could cause some systems to shutdown, reset, lose data or worse, resulting in thousands of dollars of damage (both material and immaterial).

These line interactive units give you a good balance between real time system protection and power redundancy when mains electricity is down or experiencing reliability issues. During mains voltage sags both units will deliver a steady voltage, keeping critical systems running properly. For a total power blackout the units can keep your systems running long enough to save important data or cleanly shutdown connected devices. Other important features include an auto shutdown when no load is detected, audible alarms for low battery, self diagnosis on boot, and intelligent battery management.

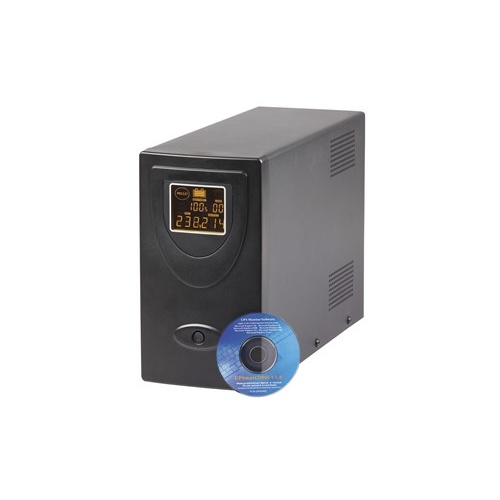

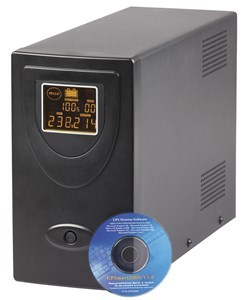

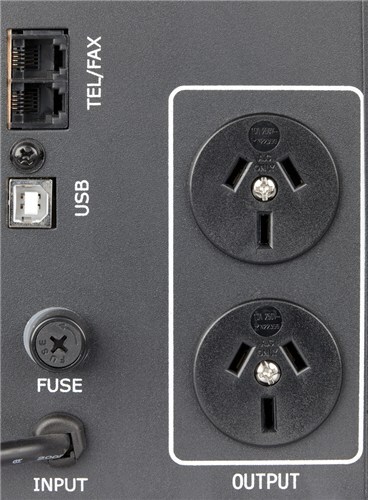

Both models feature an easy to read LCD which displays battery and load values as a percentage and input/output voltages. At the rear of the unit are 2 x RJ11 sockets for Telephone/Fax protection and a USB socket for connection to your PC for use with the power management software.

• Usage: Home PC, SOHO
• Type: Line interactive
• Status Display: LCD
• Backup time full load Mins: 10 - 20 minutes
• Recharge time: 90% Capacity after 8 Hours
• Internal SLA battery: 2 x 12V/8Ah
• Input voltage: 180 - 230VAC
• Mains connections: 2 (input and output)
• Communication: USB
• Frequency: 50Hz
• Dimensions: 325(L) x 125(W) x 220(H)mm

Note: Must be powered from the mains or a pure sinewave source (inverter,etc)

Please note: Software will ask for serial number during installation. The number is printed on the cd sleeve.

UPS Backup Time Test Results
Max. Load Backup Mode Backup Time - Typical
Cat No. VA W Internal SLA
Battery Output Waveform Transfer Time (ms) Small PC
(65W - 70W) Medium PC & LCD Monitor
(130W - 140W) Large PC & LCD Monitor
(190W - 210W)
MP5224 600 300 12V/7Ah x 1 Stepped Sine Wave < 10 31mins 11mins 4.5mins
MP5201 650 360 12V/7Ah x 1 Stepped Sine Wave < 10 25mins 9mins 5mins
MP5203 1500 750 12V/9Ah x 2 Stepped Sine Wave < 10 94mins 49mins 31mins
MP5205 650 390 12V/7Ah x 1 Stepped Sine Wave < 10 25mins 9mins 5mins
MP5207 1500 900 12V/9Ah x 2 Stepped Sine Wave < 10 94mins 49mins 31mins
MP5212 1000 700 12V/7Ah x 3 Pure Sine Wave Instant 95mins 47mins 32mins

SKU AM-MP5207
Model # MP5207
Barcode # 9319236973639
Shipping Weight 5.0000kg
