Specifications

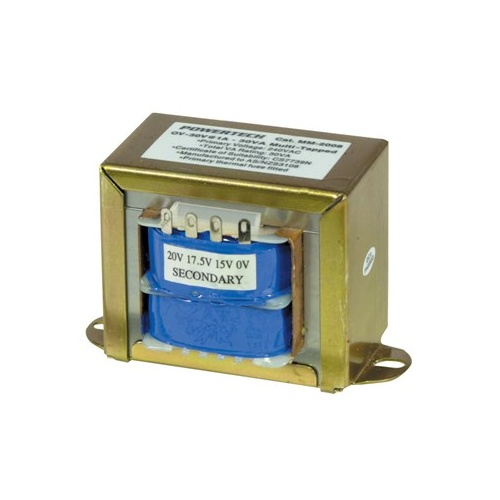

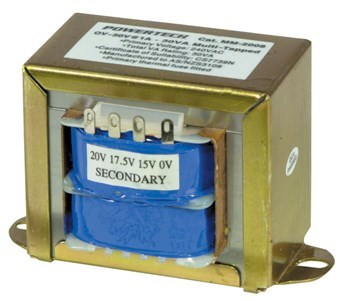

15-30V, 30VA, 1A Multi-Tapped Type 6672
Type: 6672
Secondary winding(s): Multi Tapped
Primary voltage: 240VAC
Total VA rating: 30VA

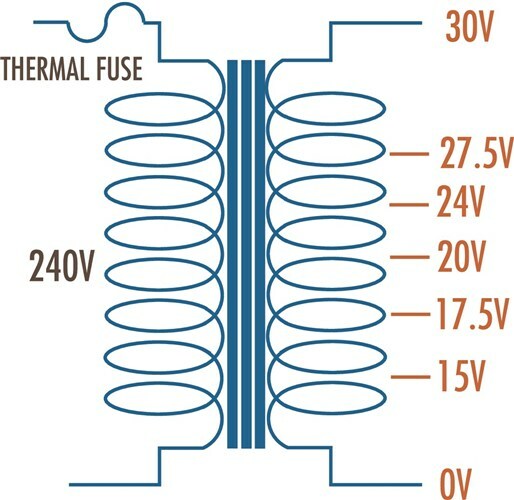

Secondary voltages: 30V, 27.5V, 24V, 20V, 17.5, 15V(CT)
Secondary current (max): 1A
Magnetising current:: 40mA
Temp rise above ambient at rated power: 60°C
Regulation: 11%
Weight: 924g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

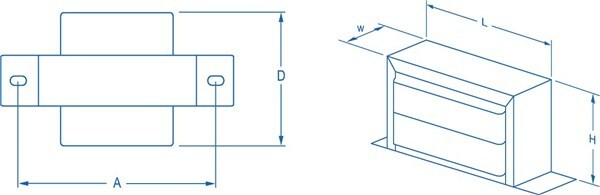

Dimensions(mm) A85 D62 L69 W35 H59



Energy Authority Certificate of Suitability No. CS:7739N
SKU AM-MM2008
Model # MM2008
Barcode # 9319236012055
