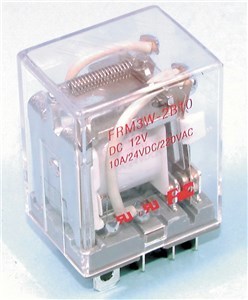

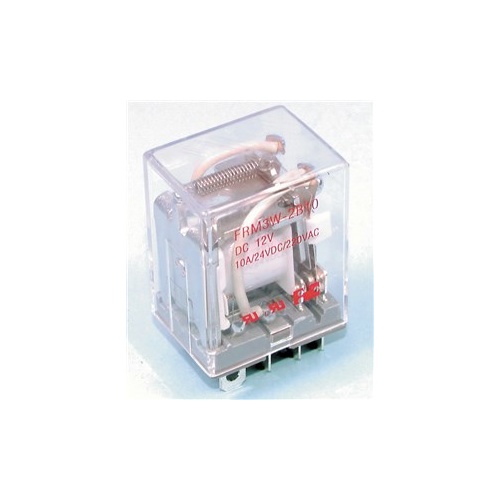

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Specifications:
• Rated coil voltage: 12VDC
• Coil current: 75mA
• Coil resistance: 160 ohms
• Contact configuration: DPDT
• DC rating: 24VDC 10A
• AC rating: 240VAC 10A (resistive load)
• Operate time: 25ms max

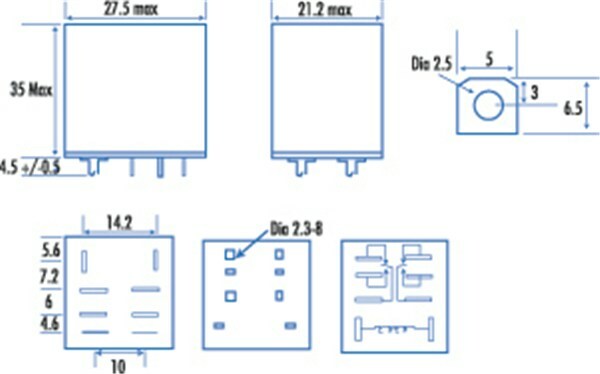

• Size: 27 x 20 x 35(H)mm
SKU AM-SY4065
Model # SY4065
Barcode # 9319236020425
